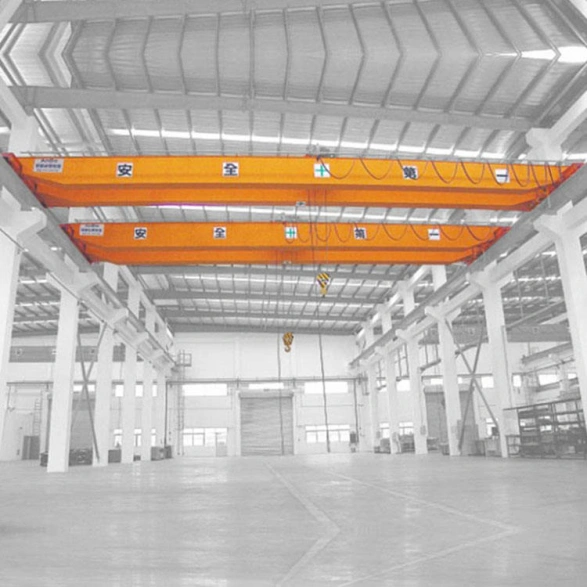

Hot Selling 5 Ton 10 Ton 20 Ton Single Beam Bridge Crane with Customized Span/Lifting Height for Factory/Warehouse/Workshop Use

Authentication mark:

Capacity:Customized

Lifting Height:Other, 30m, Customized

Voltage/Hertz:Customized

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Single Beam Bridge Crane is a cost-effective light-to-medium-duty overhead lifting solution engineered for factories, warehouses, and general industrial workshops. Available in standard capacities of 5 ton, 10 ton, and 20 ton, it features a single box-type or I-beam main girder paired with a wire rope electric hoist. Both the span and lifting height are fully customizable to match specific building dimensions and operational requirements. With a compact structure and light self-weight, the crane imposes minimal wheel loads on runway beams and is easy to install and maintain. It can be operated via ground pendant control, wireless remote control, or cabin control to suit different workflow needs.

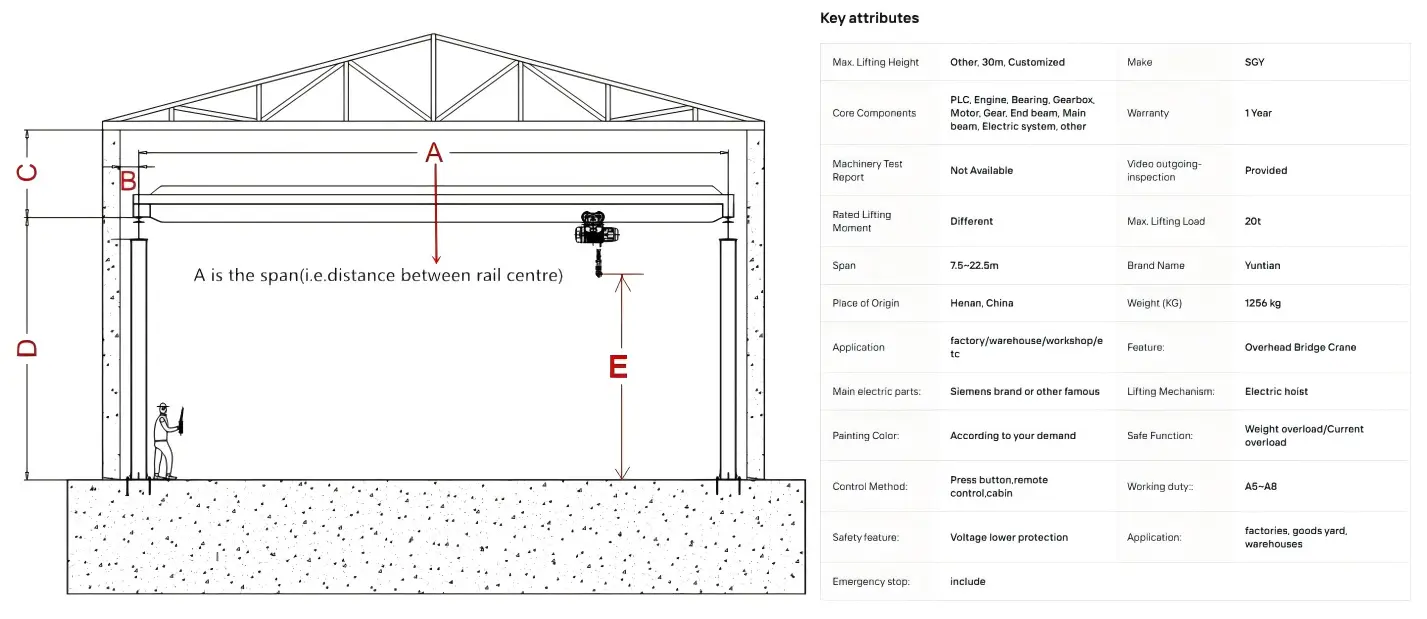

TECHNICAL DATA

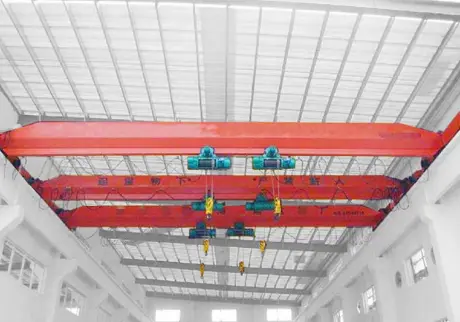

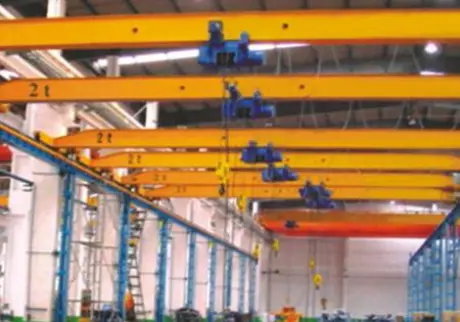

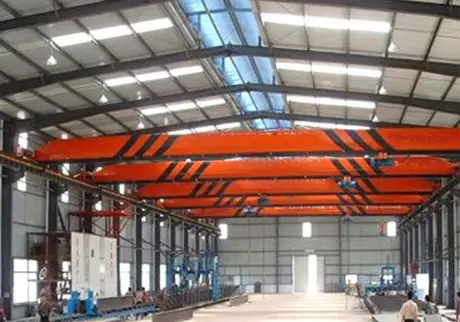

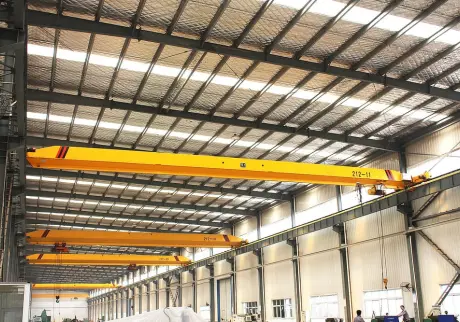

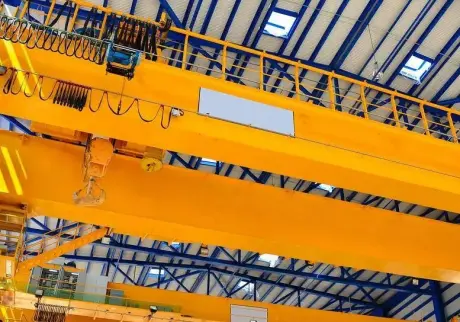

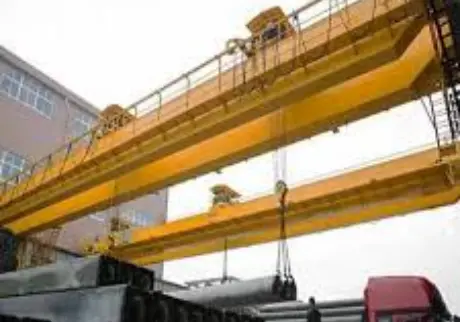

APPLICATION

Manufacturing & Metalworking

Warehousing & Logistics

Power Generation

Steel & Metallurgy

Construction Materials

FEATURES

Optimized Single-Girder Design – The box-type or I-beam main girder provides strong rigidity while keeping self-weight and wheel loads low, simplifying runway beam requirements and reducing building costs.

Smooth Two-Speed or VFD Control – Hoist lifting speeds typically configured as dual-speed (e.g., 3.5/0.35 m/min) for both efficient vertical movement and precise positioning. Optional variable frequency drive control on long travel and cross travel further enhances smoothness.

Flexible Operation Modes – Supports ground pendant control with push buttons, wireless remote control for safe-distance operation, and optional cabin control with joystick. Multiple modes can be configured simultaneously on the same crane.

Cost-Effective & Low Maintenance – The simple, modular structure minimises manufacturing and installation costs while reducing long-term maintenance requirements, making it an economical choice for light to medium-duty applications.

Space-Efficient Footprint – Compact end carriages and optimised girder-to-wall clearance allow the crane to operate close to the building structure, maximising usable floor and overhead space in confined workshops.
