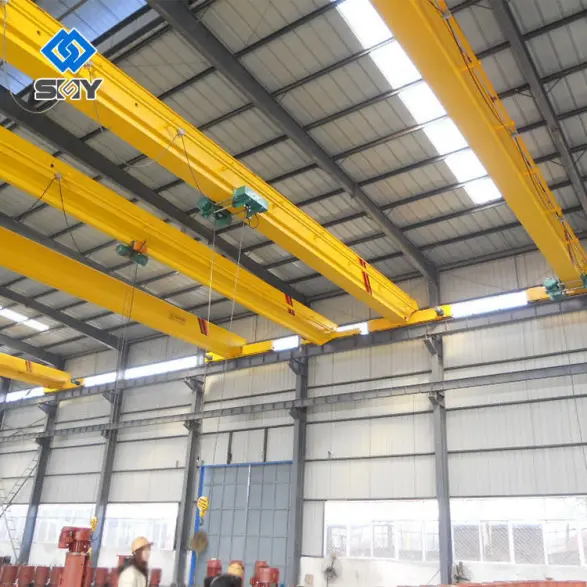

Low Headroom Crane Single Beam Bridge Crane 5 Ton 10 Ton 16 Ton Single Girder Overhead Crane for Warehouse

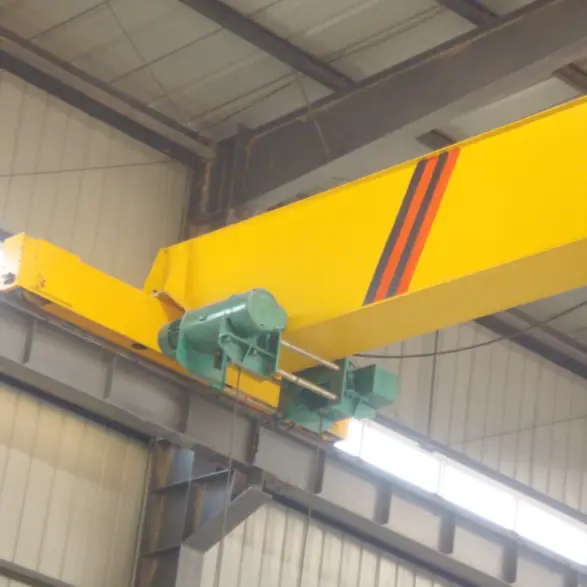

low headroom single girder overhead crane.webp

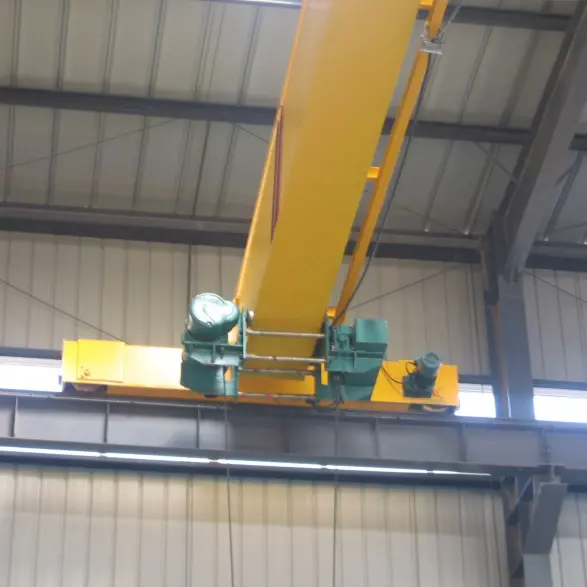

low headroom overhead travelling crane.webp

Authentication mark:

Capacity:16ton

Lifting Height:3 m, 30m

Voltage/Hertz:customized

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

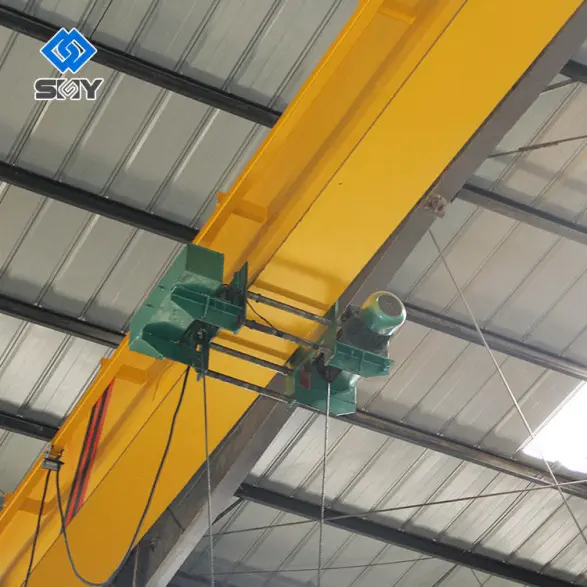

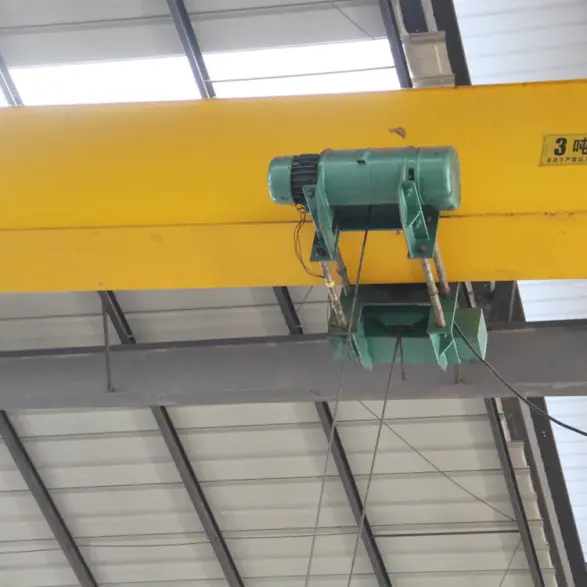

Engineered for workshops and warehouses where ceiling height is limited yet maximum lifting height is essential, the Low Headroom Single Girder Overhead Crane features a compact, low-profile design that significantly expands the usable hook stroke compared to a conventional single girder crane.The electric hoist runs along a reinforced box girder or I-beam main girder, with a short-headroom end truck configuration that keeps the entire crane as close to the roof structure as possible. Available in 5-ton, 10-ton, and 16-ton load capacities as standard configurations, the crane delivers efficient, reliable material handling in confined work environments. Designed and manufactured to FEM, DIN, and ISO international standards, it can be equipped with ground pendant, wireless remote, or cabin control, and comes with CE, ISO, and other certifications to meet worldwide compliance requirements.### Application Industries.

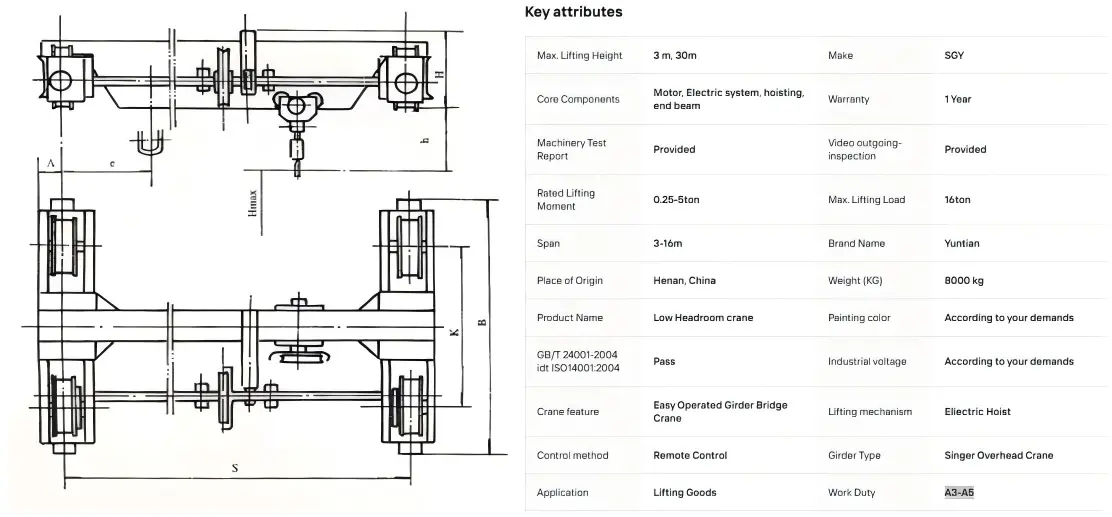

TECHNICAL DATA

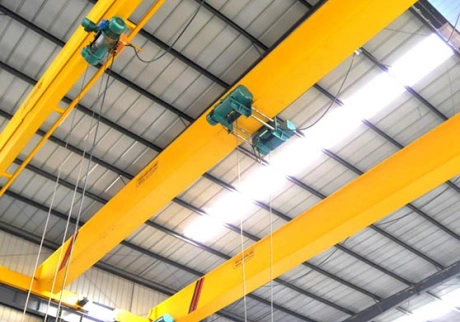

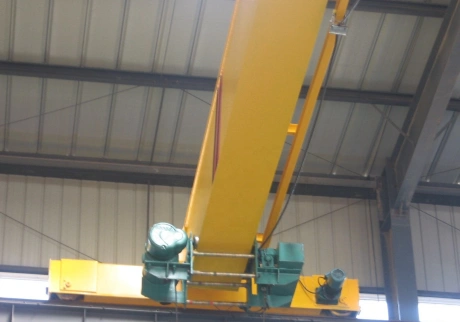

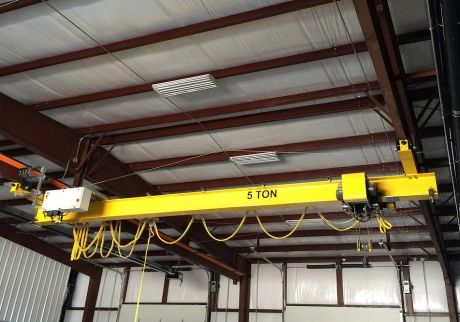

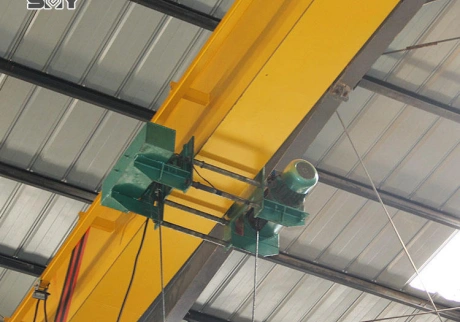

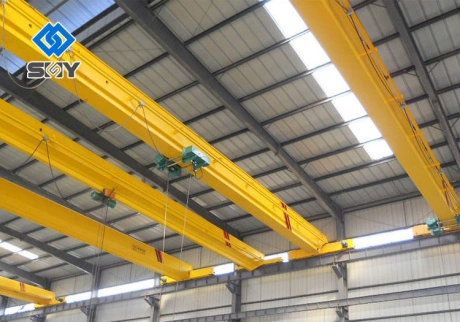

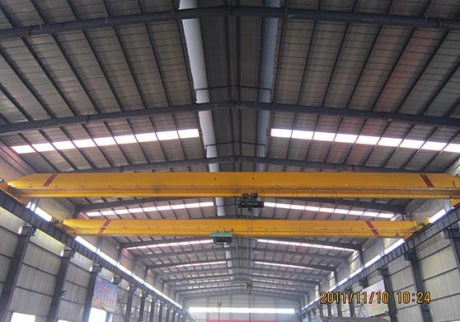

APPLICATION

Manufacturing & Machining

Warehousing & Logistics

Automotive & Assembly Plants

Power Generation & Energy Facilities

Steel & Metallurgical Processing

Paper, Pulp & Light Industry

FEATURES

Lightweight, Low Wheel-Load Design The overall self-weight is approximately 15% lighter than a conventional single girder crane of the same capacity, resulting in lower wheel loads on the runway beams. This can reduce the cost of the building steel structure or allow higher capacity cranes on existing runways.

Smooth Variable-Speed Control All motions can be driven through variable-frequency drives (VFD). Lifting, cross travel, and long travel can start and stop smoothly with minimal load sway, improving positioning accuracy and reducing mechanical wear.

Flexible Operation Modes The crane can be operated by wired pendant (ground control), wireless radio remote control, or from an enclosed cabin. Remote control allows the operator to stand at a safe distance with an unobstructed view of the load.

Comprehensive Safety Protection Standard safety devices include overload protection, upper and lower limit switches, emergency stop, phase sequence protection, travel limit switches, and anti-derailment end stops. Optional features include anti-collision systems and programmable logic controllers (PLC) for automated motion control.

Simplified Installation & Low Maintenance The bolt-together modular structure between the main girder and end carriages reduces on-site installation time and cost. Direct-drive geared motor units and pre-lubricated components minimise long-term maintenance requirements compared to open-gear designs.
