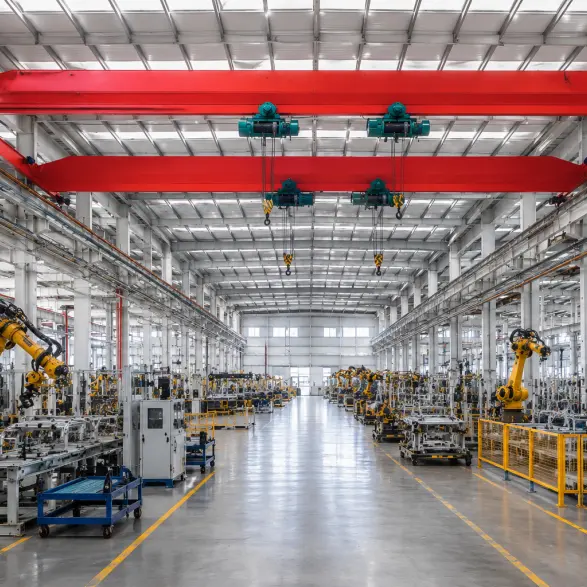

Single Girder Overhead Crane for Workshops & Warehouses

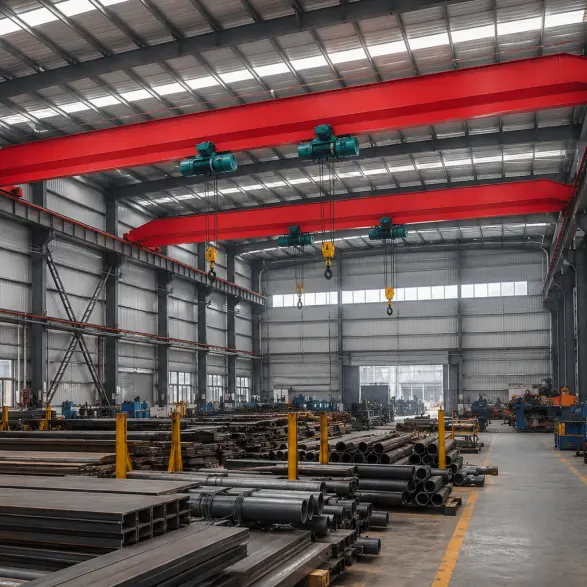

single girder overhead crane
Single Girder Overhead Crane for Workshops & Warehouses

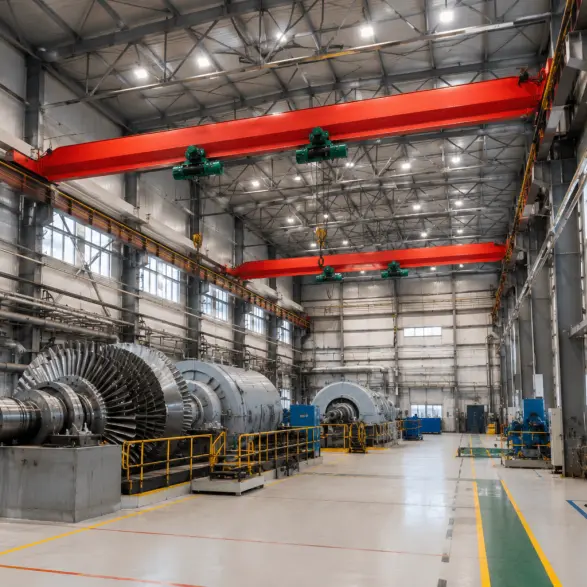

single girder bridge crane
single beam overhead crane

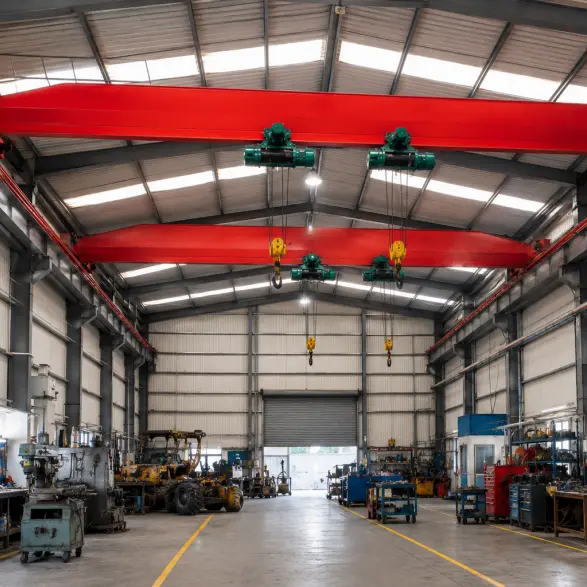

workshop overhead crane

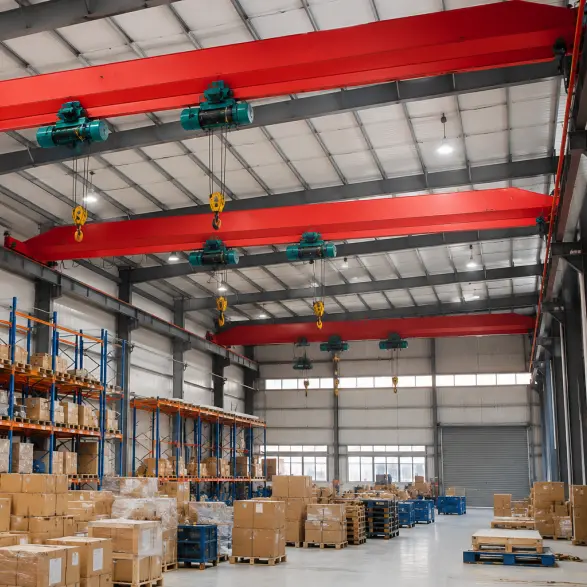

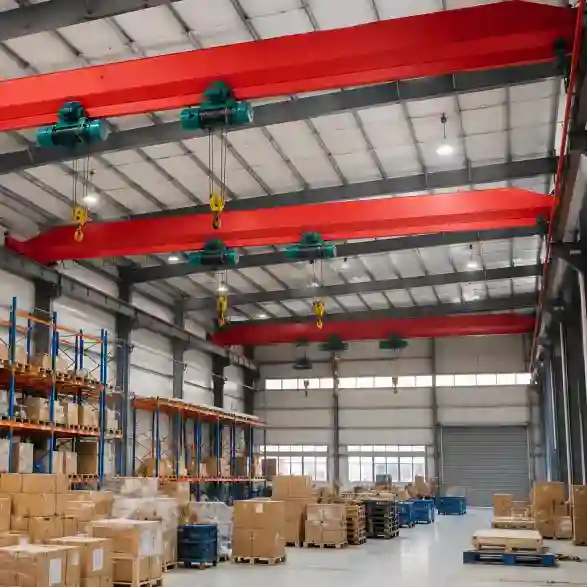

warehouse overhead crane
single girder overhead crane
Single Girder Overhead Crane for Workshops & Warehouses
single girder bridge crane
single beam overhead crane
workshop overhead crane
warehouse overhead crane
Authentication mark:
CCC CE ABS BV CCS
Capacity:1-20 tons (customizable)
Lifting Height:5 – 32.5 m, (customizable)
Voltage/Hertz:(customizable)
Brand Name: YUNTIAN
Place of Origin: Henan, China
file Product manual download
Get a Free Quote
WhatsApp

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Single Girder Overhead Crane for Workshops & Warehouses is a cost-effective, light-to-medium-duty lifting solution engineered for everyday material handling in manufacturing facilities, assembly lines, warehouses, and logistics centers. Featuring a single box-section or I-beam main girder supported on two end trucks, the hoist and trolley run on the bottom flange of the girder—a design renowned for its simplicity, compact footprint, and lower initial investment.

TECHNICAL DATA

Parameter Specification
Lifting Capacity 1 – 20 tons (customizable)
Span 7.5~22.5m (customizable)
Lifting Height 5 – 32.5 m (customizable)
Work Duty Class A3 – A5
Control Method Pendant / Wireless Remote / Cabin
Ambient Temperature -25°C to +40°C
Protection Class IP44 – IP54
Hoisting Speed 8.0 m/min / 0.8 m/min (dual speed)

HOT PRODUCTS

Electric Single Beam Overhead Crane

Electric Single Beam Overhead Crane

Apply: Manufacturing Plants,Mechanical Workshops,Warehouses,Logistics Centers,Steel Fabrication,Workshops
more Read More
Anode Carbon Stacking Overhead Crane

Anode Carbon Stacking Overhead Crane

Apply: Aluminum Electrolysis Plants (Prebaked Anode Aluminum Smelters) Carbon Products Enterprises (Prebaked Anode Production Lines) Carbon Plant Carbon Block Warehouses Anode Baking Workshops Graphite Electrode Manufacturing Facilities
more Read More
Explosion-Proof Single Girder Overhead Crane

Explosion-Proof Single Girder Overhead Crane

Apply: Oil Refineries & Petrochemical Plants,Chemical Manufacturing,Paint Shops & Coating Facilities,Gas Stations & LPG Facilities,Pharmaceutical Manufacturing,Ordnance & Munitions Storage
more Read More

APPLICATION

application

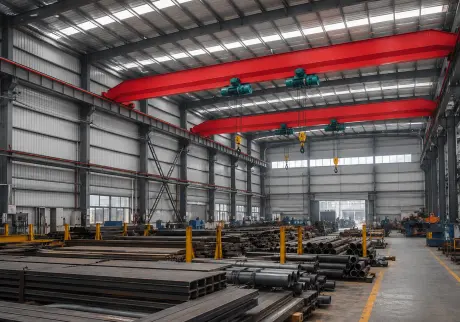

Metal Fabrication & Steel Service
application

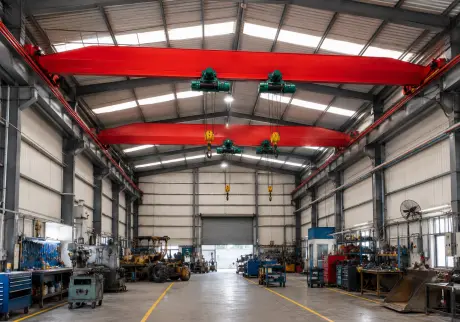

Repair & Maintenance Workshops
application

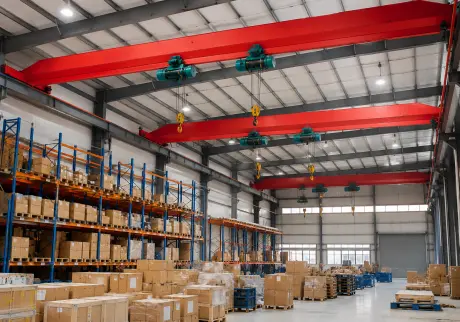

Warehousing & Logistics
application

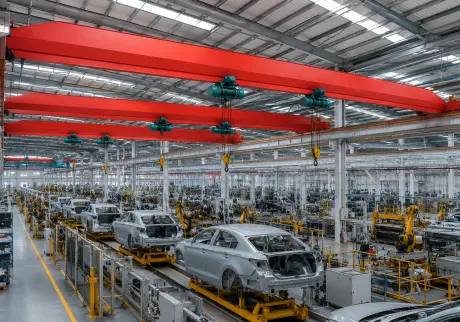

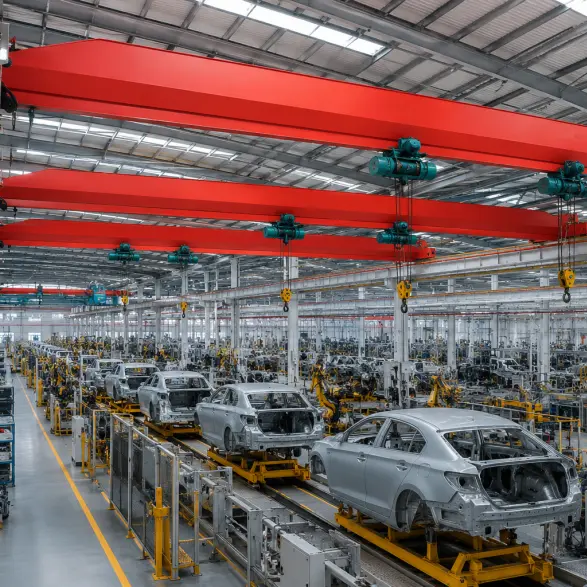

Automotive Production
application

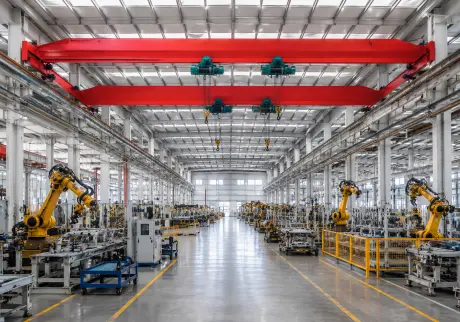

Manufacturing & Assembly
application
Warehousing & Logistics

FEATURES

1
Cost-Effective Material Handling — Lower initial investment due to simpler single-girder structure and reduced material requirements. Ideal for applications where maximum hook height and heavy-duty continuous service are not the primary concerns.
2
Lightweight, Low Wheel Load Design — Imposes minimal stress on building structures, often suitable for existing facilities without heavy reinforcement.
3
Space-Saving Compact Footprint — Requires less headroom than double-girder alternatives, maximizing usable vertical space beneath the crane.
4
Flexible Control Options — Supports pendant control, wireless remote control, and cabin operation. Optional variable frequency drive delivers smooth acceleration and deceleration for precise load positioning.
5
Easy Installation & Maintenance — Modular design with standardized components enables quick installation. Key components are easy to inspect and replace, minimizing maintenance workload.
6
Comprehensive Safety Protection — Standard safety systems include overload limiters, emergency stop buttons, limit switches for all motion axes (up/down, left/right, forward/back), and safety catches on hooks.

FAQ

Is a single girder overhead crane suitable for existing workshops or warehouses without built-in concrete columns or corbels?

add subtract
Yes. If your existing workshop or warehouse lacks pre-built concrete support columns (corbels), we offer tailored structural retrofit solutions: Independent Steel Pillar Structure (Self-Supporting Structure): We can install free-standing steel support columns along the walls to support the runway beams, requiring zero structural modifications to your existing building walls. Suspension / Underhung Design: If your roof steel trusses have adequate load-bearing capacity, a suspension single girder crane can be directly hung from the roof beams, keeping 100% of your warehouse floor completely clear of columns.

How does a low-headroom single girder crane maximize hook lifting height in low-ceiling warehouses?

add subtract
Vertical clearance is critical for maximizing warehouse storage stack heights. Our workshop single girder bridge cranes utilize two space-saving engineering approaches: Low Headroom Electric Hoist Trolley: Replaces standard under-slung hoists with a side-mounted compact hoist frame that travels along the side of the main beam, raising the hook limit by 200mm to 500mm. Flush-Mounted End Truck Connection: The main girder is box-welded to the top or side face of the end carriages rather than sitting underneath them, utilizing every inch of vertical clearance below the roof trusses.

When should a warehouse manager upgrade from a single girder crane to a double girder crane?

add subtract
While single girder overhead cranes offer exceptional cost efficiency for light-to-medium manufacturing, a double girder upgrade is recommended under the following conditions: Weight Capacity Threshold: When your standard lifting requirement exceeds 20 tons (single girder standard range is 1t to 20t). Wide Span Requirements: When your factory building span exceeds 30 to 35 meters, where double girders provide superior structural rigidity and lower deflection. High-Frequency Heavy Duty (A6+): If the crane operates continuously 24/7 at near-maximum load capacity, such as in heavy steel distribution hubs.

What control options and safety features ensure easy operation for general warehouse personnel?

add subtract
To guarantee safe, user-friendly operation without complex training, Yuntian workshop overhead cranes come fully equipped with intuitive controls and multi-tier protection: Wireless Remote Control & Pendant Control: Ergonomic handheld wireless remotes allow operators to control movements from a safe distance with clear line-of-sight to the load. Standard Safety Suite: Includes dual-stage overload limiters, anti-collision sensors, cross/long-travel limit switches, and Variable Frequency Drive (VFD) soft-start controls to minimize load swing during starting and stopping.
