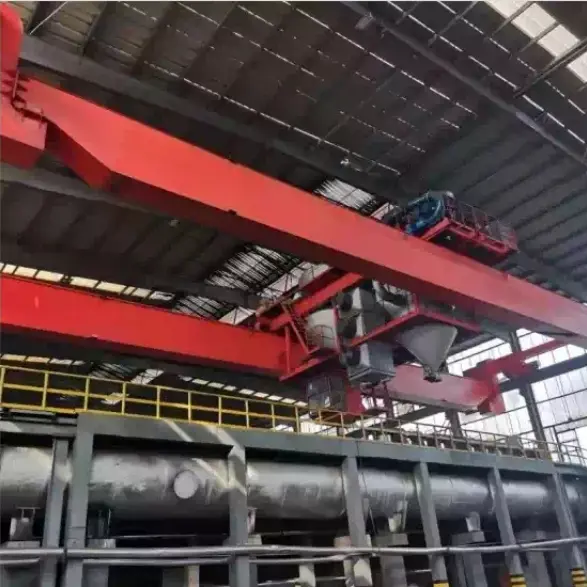

Multi-Functional Baking Overhead Crane

Multi-Functional Baking Overhead Crane

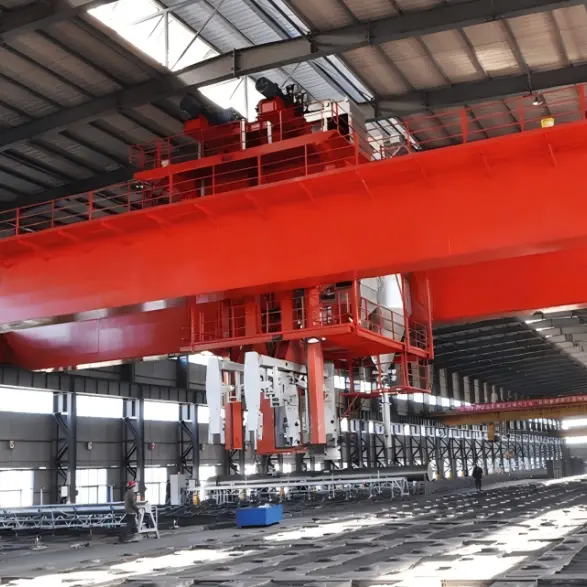

Multi-Functional Baking Overhead Traveling Crane

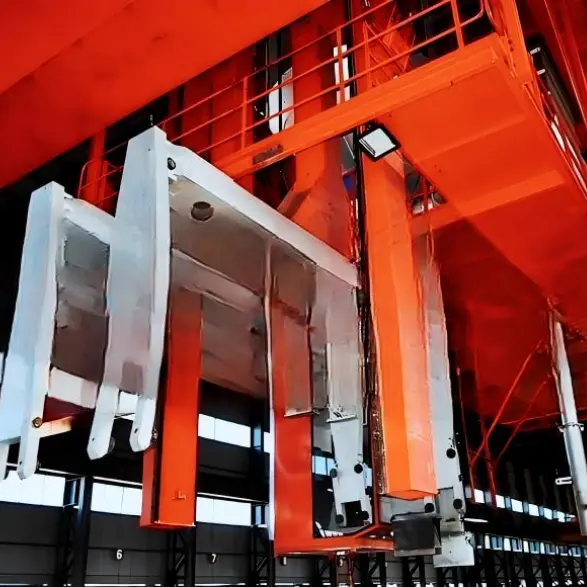

Baking Furnace Overhead Crane

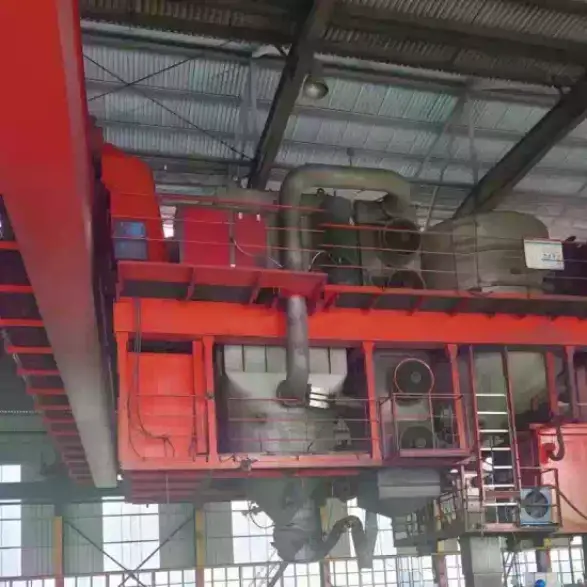

Anode Baking Crane (common in aluminum/carbon industry)

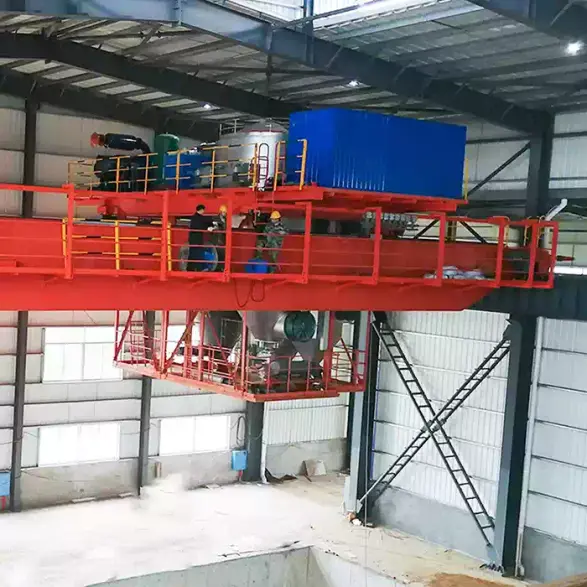

Carbon Baking Crane
Multi-Functional Baking Overhead Crane
Multi-Functional Baking Overhead Traveling Crane
Baking Furnace Overhead Crane
Anode Baking Crane (common in aluminum/carbon industry)
Carbon Baking Crane
Authentication mark:
CCC CE ABS BV CCS
Capacity:5 – 320 t（customizable）
Lifting Height:12 m – 32 m (customizable)
Voltage/Hertz:(customizable)
Brand Name: YUNTIAN
Place of Origin: Henan, China
file Product manual download
Get a Free Quote
WhatsApp

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Multi-Functional Baking Overhead Crane is a specialized bridge crane designed for high-temperature baking processes in carbon anode manufacturing. It integrates a vacuum material conveying system, dust removal and cooling system, and anode carbon block clamping device into a single unit, making it the dedicated operating equipment for anode baking furnace process lines.The crane features high-temperature resistant steel structure with ceramic fiber insulation protection, capable of continuous operation in environments exceeding 800°C. It is equipped with dual-PLC redundant control system and adaptive hydraulic gripping modules, enabling precise positioning of baked materials such as anode blocks. The unique anti-sway system effectively suppresses load swings caused by airflow disturbances, achieving positioning accuracy of ±2 mm.

TECHNICAL DATA

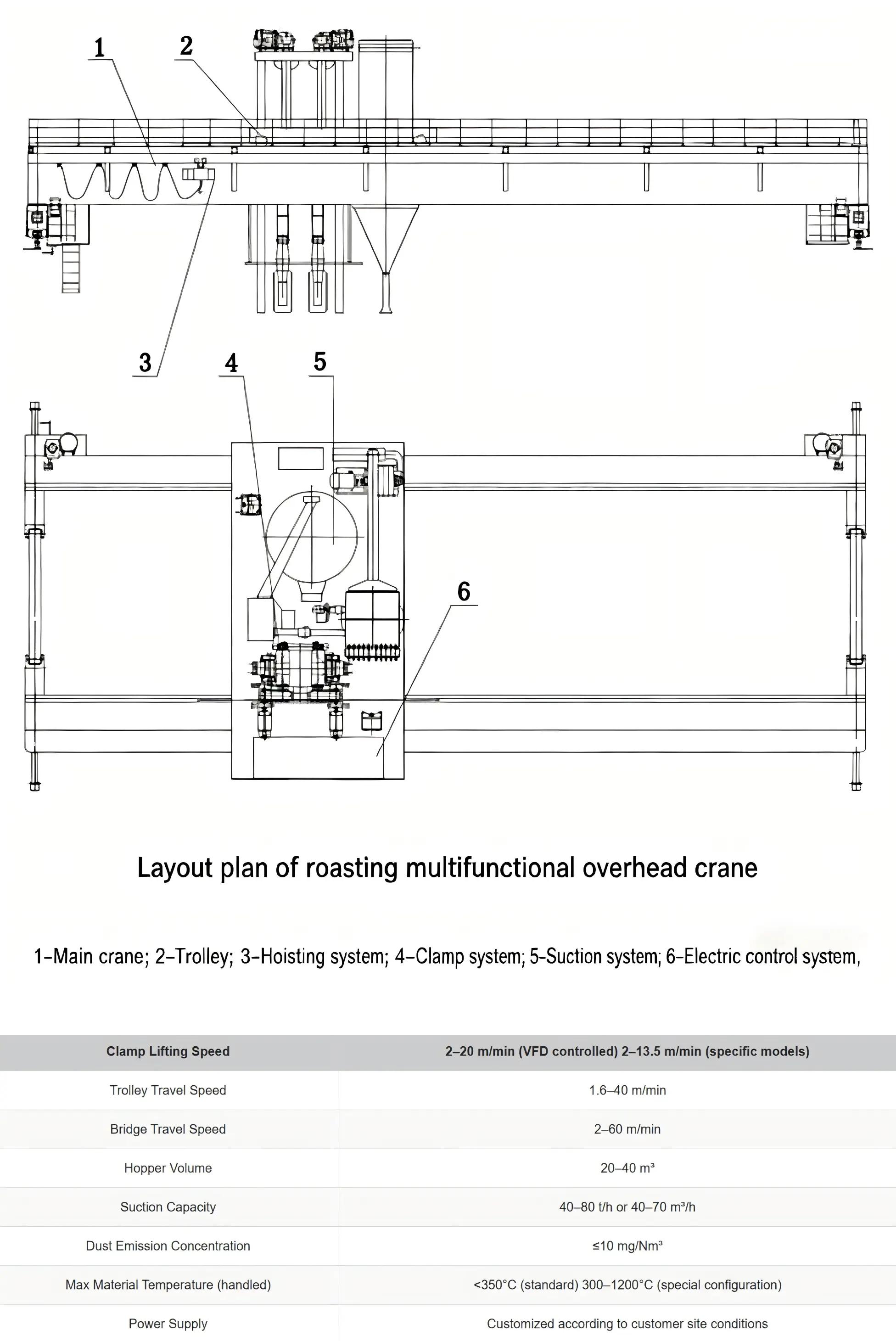

Attribute Specification Range
Rated Lifting Capacity 5 – 320 t（customizable）
Lifting Height 12 m – 32 m,customizable
Work Duty Class A5-A8
Clamp Lifting Speed 2 – 20 m/min
Span 10.5 – 36 m
Silo Capacity 20 – 42 m³
Total Power 128 – 160 kW
Auxiliary Hoist Capacity 5 – 16 t
Power Supply (customizable)

HOT PRODUCTS

Single girder suspension overhead crane

Single girder suspension overhead crane

Apply: Manufacturing & Assembly Workshops,Warehousing & Logistics,Light Industry & Textile Mills ,Food Processing & Cold Storage,Automotive Repair & Service Bays,Power Generation & Utility Facilities
more Read More
Intelligent Overhead Crane — Customizable Span, Capacity & Height

Intelligent Overhead Crane — Customizable Span, Capacity & Height

Apply: Automated warehouses and smart logistics centres,Automotive manufacturing and assembly plants,Steel mills, foundries, and metallurgical processing facilities
more Read More
Rotary Feeding Overhead Crane with 270° Rotating Trolley for Scrap Charging in Steel Mills

Rotary Feeding Overhead Crane with 270° Rotating Trolley for Scrap Charging in Steel Mills

Apply: Integrated Steel Mills.Steelmaking Converter Operations,Metallurgical Scrap Handling,Foundries & Iron Casting,Steel Scrap Recycling Facilities,Heavy Industrial Charging Operations
more Read More

APPLICATION

application

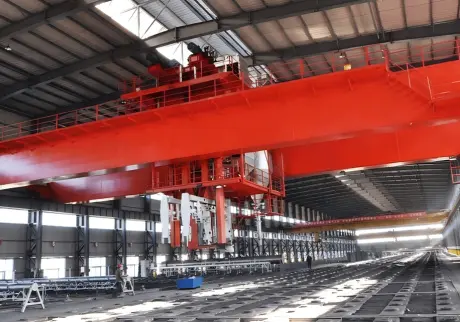

Metallurgical Industry – Anode Roasting in Aluminum Plants
application

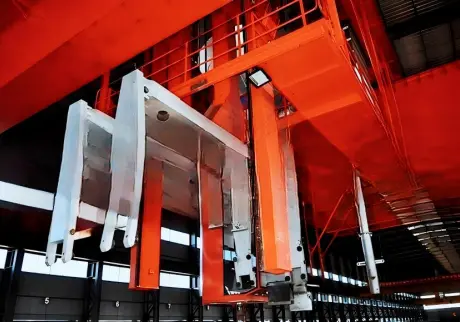

Chemical Industry – Catalyst and Lithium Battery Material Handling
application

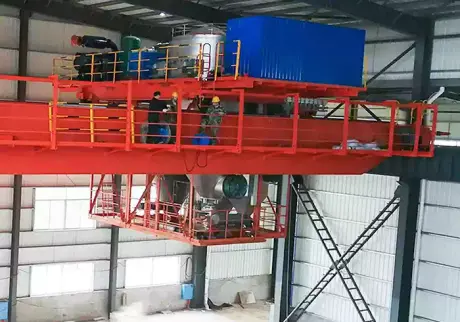

Building Materials Industry – Cement and Refractory Material Production,

FEATURES

1
Loading (Furnace Charging) Loads unbaked anode carbon blocks (green blocks) from the marshalling station into the baking furnace pit using the anode clamp.
2
Filling Fills granular coke from the material hopper into the gaps between the furnace wall and the anode blocks, and covers the top to ensure a stable baking environment.
3
Material Suction Uses the suction pipe of the pneumatic conveying equipment to extract high-temperature filling material from the furnace pit into the storage bin, where the material is cooled and dust is separated for recovery.
4
Unloading (Furnace Discharging) Removes the baked anode blocks (baked blocks) from the baking furnace using the anode clamp and transfers them to the conveyor belt or designated area.
5
Other Auxiliary Lifting Operations An auxiliary suction pipe mounted on the trolley cleans flues and removes dust. A 10t electric hoist on the bridge handles burners, blower pipes, thermocouple racks, flue gas racks, and performs furnace maintenance.

FAQ

What are the primary functions integrated into a Multi-Functional Baking Overhead Crane for anode baking workshops?

add subtract
Designed as the core operational equipment for carbon anode baking plants, a single Anode Baking Crane integrates up to five critical process tools on a specialized multi-functional trolley: Packing Coke Suction & Discharge: High-capacity pneumatic vacuum system to suck hot packing coke out of the baking pits and precisely reload fresh coke. Anode Clamping Mechanism: Specialized hydraulic/mechanical clamps to lift and load green anodes into pits and extract baked carbon blocks after cooling. Auxiliary Hoist & Maintenance Derrick: Secondary electric hoist for handling furnace covers, burner racks, and pit wall maintenance tools. Integrated Dust Collection: Heavy-duty pulse-jet bag filters to capture emissions instantly at the suction head during high-speed coke transfers.

How does the crane protect its structure and electronics against extreme temperatures (300°C–500°C material temp) and abrasive coke dust?

add subtract
Anode baking creates one of the harshest environments in metal smelting. Our multi-functional cranes feature multi-layered heavy-duty protection: Heat Radiation Shielding: Thermal insulation barriers, double-skin insulated cabs, and heat-resistant air conditioning keep operator cabins and electrical enclosures within working limits (<25°C inside). Anti-Wear Piping & Liners: Pneumatic coke transport pipes and suction nozzles are lined with high-chromium wear-resistant alloys or ceramic liners to withstand severe friction from calcined coke. Sealed Enclosures & Positive Pressure: Control cabinets and PLC racks feature IP65 sealing combined with positive-pressure air filtration to prevent conductive carbon dust ingress.

What environmental dust-control standards does the integrated vacuum and filtration system achieve?

add subtract
To comply with global EHS and green aluminum regulations, the on-board filtration unit utilizes advanced multi-stage dust separation: Cyclone + Baghouse Separation: Primary cyclone separators remove heavy coke granules, followed by high-temperature pulse-jet bag filters that capture fine dust. Ultra-Low Emission Rate: Maintains a dust filtration efficiency exceeding 99.9%, achieving clean air discharge levels below 10 mg/m³ during peak suction operations.

How does the automated positioning system enhance operation safety and precision around baking pits?

add subtract
Poor visibility due to heat haze and dust in baking halls is mitigated by intelligent automation: Laser / Radar Auto-Alignment: Absolute encoders, 3D laser scanners, and millimeter-wave radar allow the crane to automatically align with baking pit centers within ±3mm accuracy. Interlocked Safety Protocols: Intelligent PLC interlocks prevent the suction pipe or anode clamp from lowering unless the trolley is locked securely over the designated pit, preventing accidental structural impacts.
