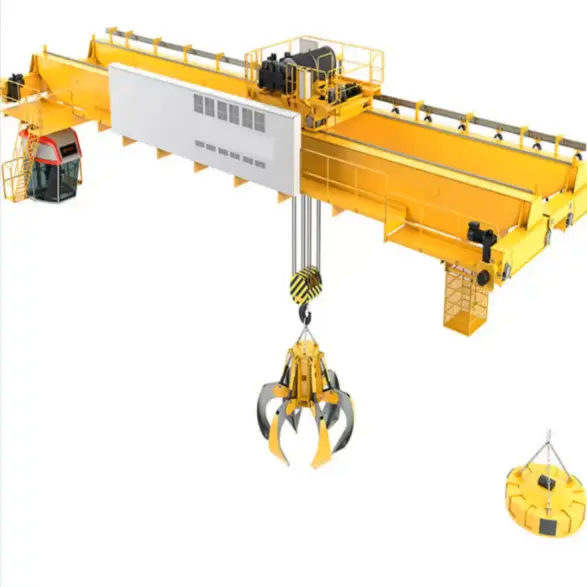

Waste factory use double beam overhead crane with grab bucket

Authentication mark:

Capacity:(customizable)

Lifting Height:18m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

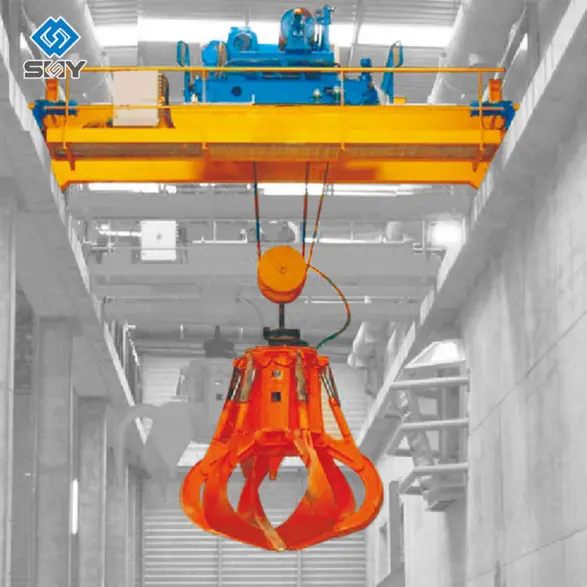

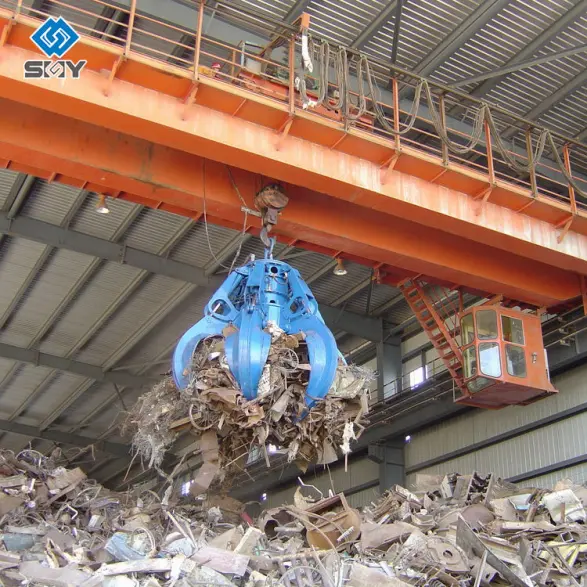

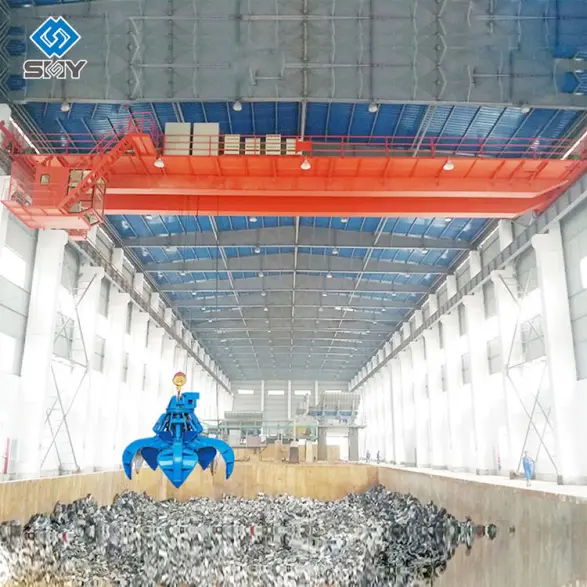

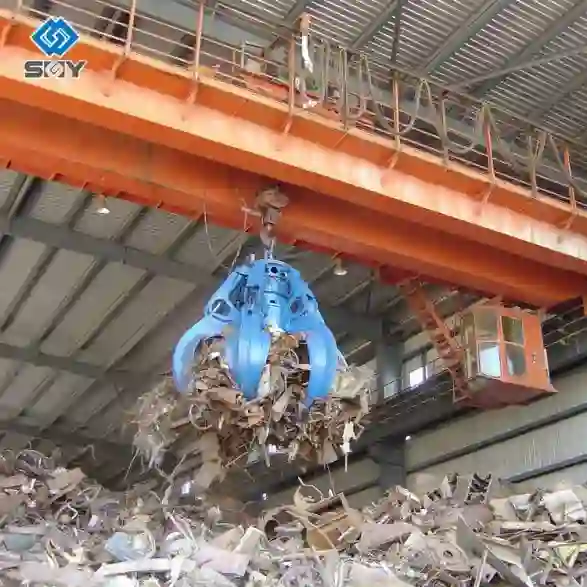

The Double Beam Overhead Crane with Grab Bucket is a heavy-duty material handling solution specifically engineered for waste management facilities, refuse incineration plants, and bulk material operations. Featuring a robust double girder structure, the crane is equipped with a specialized grab bucket—typically a multi-petal hydraulic grab—to efficiently grip, lift, transport, and discharge loose, irregular, and high-density materials such as municipal solid waste, scrap metal, and industrial refuse.

TECHNICAL DATA

Max. Lifting Height	18m
Core Components	Bearing
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Rated Lifting Moment	Design
Max. Lifting Load	70 tons (customizable)
Span	12m (customizable)
Place of Origin	Canada
Weight (KG)	13200 kg
Selling Units	Single item

HOT PRODUCTS

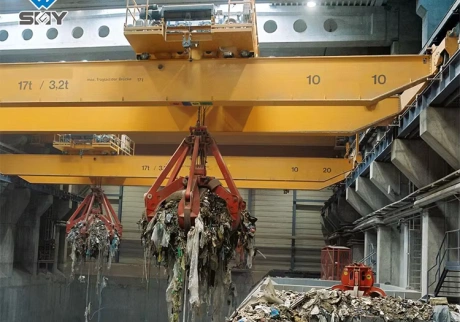

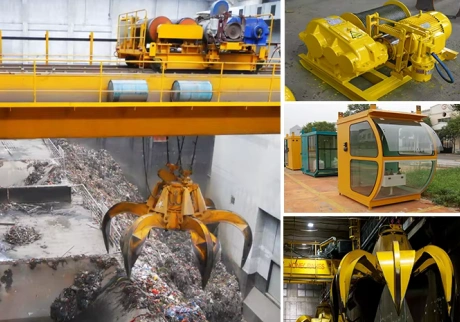

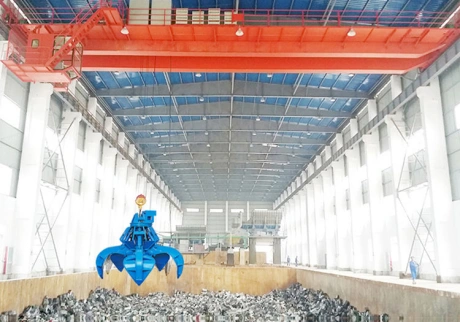

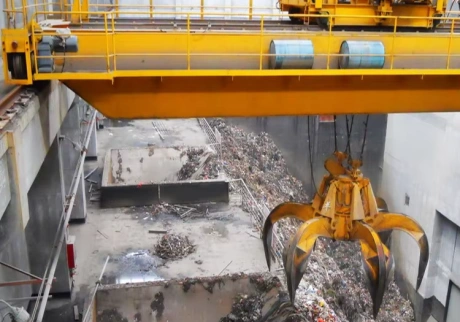

Municipal solid waste incineration and waste-to-energy power plants

Industrial waste processing and recycling centers

Landfill and waste transfer stations

Municipal solid waste incineration and waste-to-energy power plants

Biomass and refuse-derived fuel production facilities

Large-scale waste sorting and composting plants

FEATURES

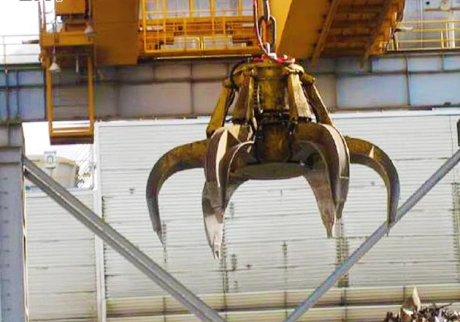

Specialized Multi-Petal Grab Bucket Handling — Equipped with a 4-6 jaw hydraulic orange peel grab that forms a confined space when closed, enabling efficient gripping of irregular, loose, and bulky materials such as scrap metal, garbage, and solid waste. The grab design ensures high filling rates and prevents material leakage during transport.

Heavy-Duty Double Box-Girder Structure — The double girder design provides enhanced stability, greater load-bearing capacity, and superior torsional resistance compared to single girder configurations, ensuring stable and safe movement of heavy, unbalanced loads in demanding environments.

Flexible Multi-Mode Control System — Supports three freely switchable control modes: manual, semi-automatic, and fully automatic, with manual priority available in any automatic mode. Fully automatic operation includes automatic grabbing, weighing, repeat feeding, and automatic return to position, greatly improving operational efficiency.

Adaptability to Harsh Operating Conditions — Specifically designed to operate in high-temperature, high-humidity, heavy dust, and corrosive gas environments typical of waste incineration bunkers. Features include corrosion-resistant materials, sealed electrical systems, and robust mechanical components rated for A6-A8 work duty with up to 8,000 hours of annual operation.
