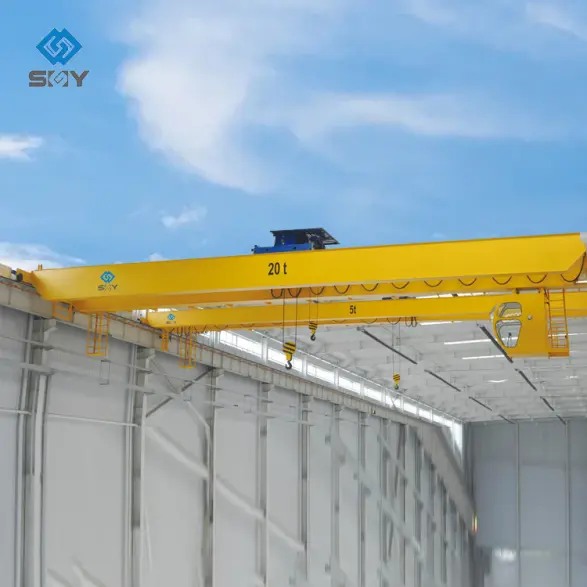

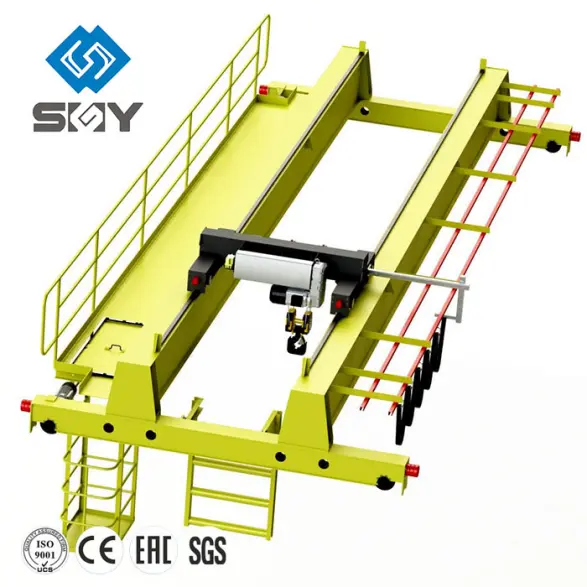

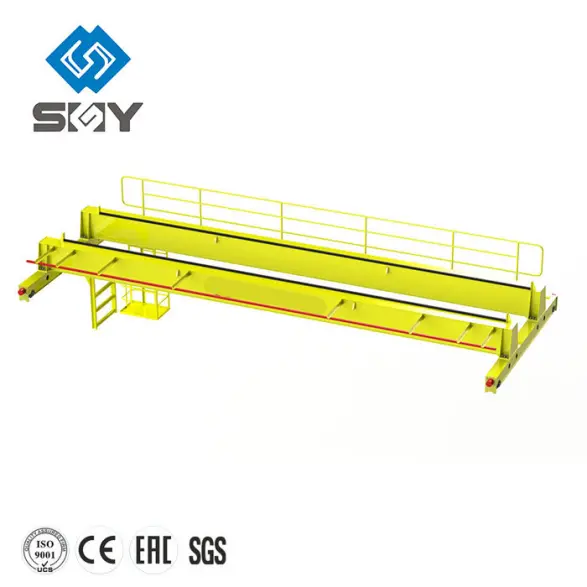

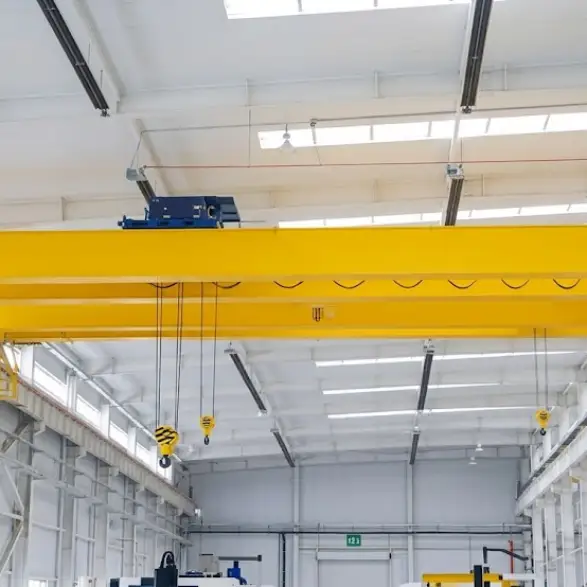

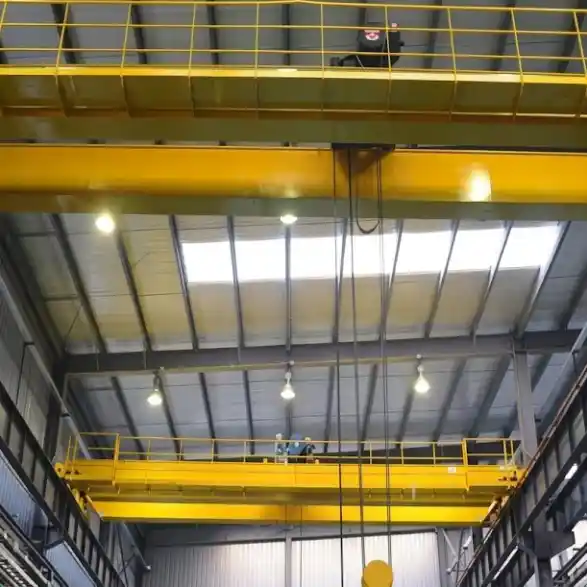

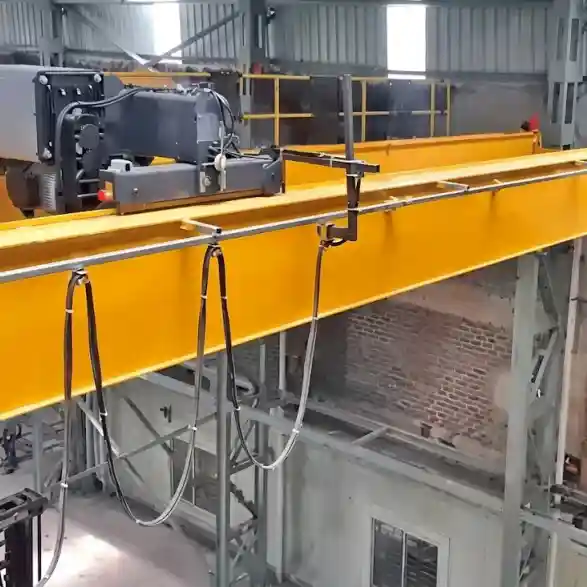

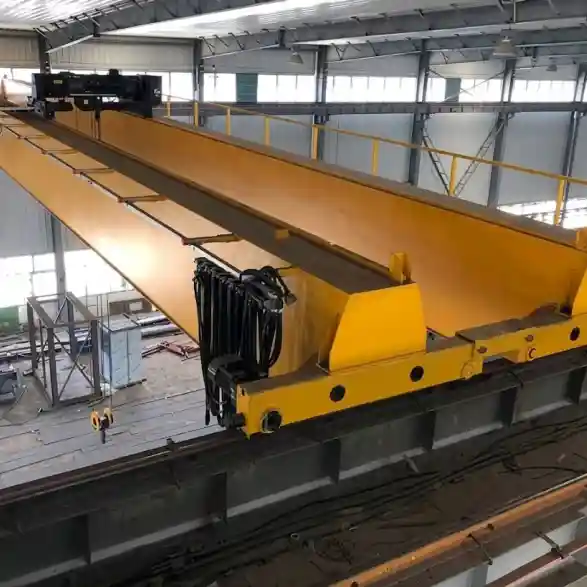

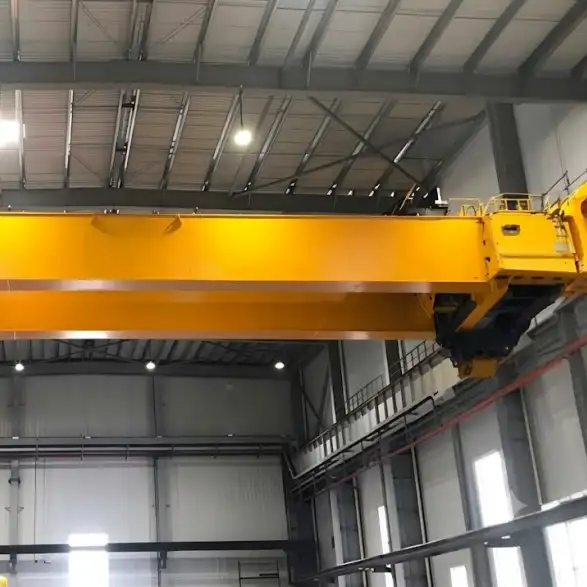

European Double Girder Overhead Crane

European Double Girder Overhead Crane
European Double Girder Overhead Crane
european standard double girder crane
European Double Girder Overhead Crane
European Double Girder Overhead Crane
European Double Girder Overhead Crane
european double girder bridge crane
European Double Girder Overhead Crane
European Double Girder Overhead Crane
european standard double girder crane
European Double Girder Overhead Crane
European Double Girder Overhead Crane
European Double Girder Overhead Crane
european double girder bridge crane
Authentication mark:
CCC CE ABS BV CCS
Capacity:5 – 550 t (customizable)
Lifting Height:6 – 30 m (customizable)
Voltage/Hertz:customizable
Brand Name: YUNTIAN
Place of Origin: Henan, China
file Product manual download
Get a Free Quote
WhatsApp

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

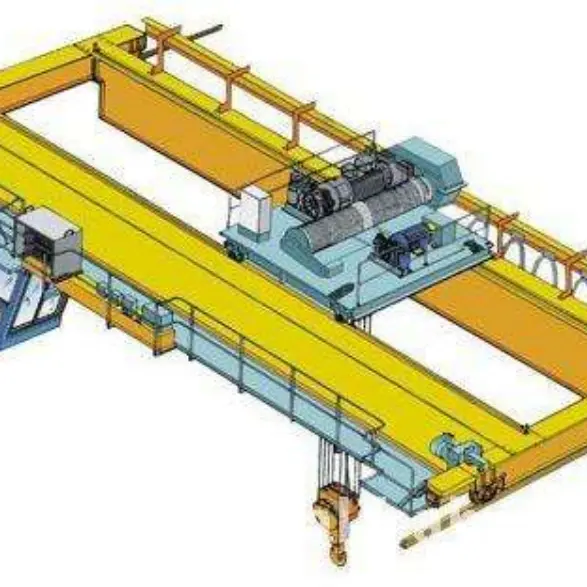

The European Double Girder Overhead Travelling Crane is a heavy-duty lifting solution engineered to FEM\/DIN standards for demanding industrial applications. Featuring a robust double box girder structure with a European-style trolley and hoisting unit, it delivers high load capacity, wide spans, and excellent hook height utilisation, making it ideal for workshops requiring frequent, high-intensity material handling. Compared to conventional double girder cranes, the European design optimises deadweight and wheel loads while maintaining structural rigidity—long-term reliability is built into every unit.

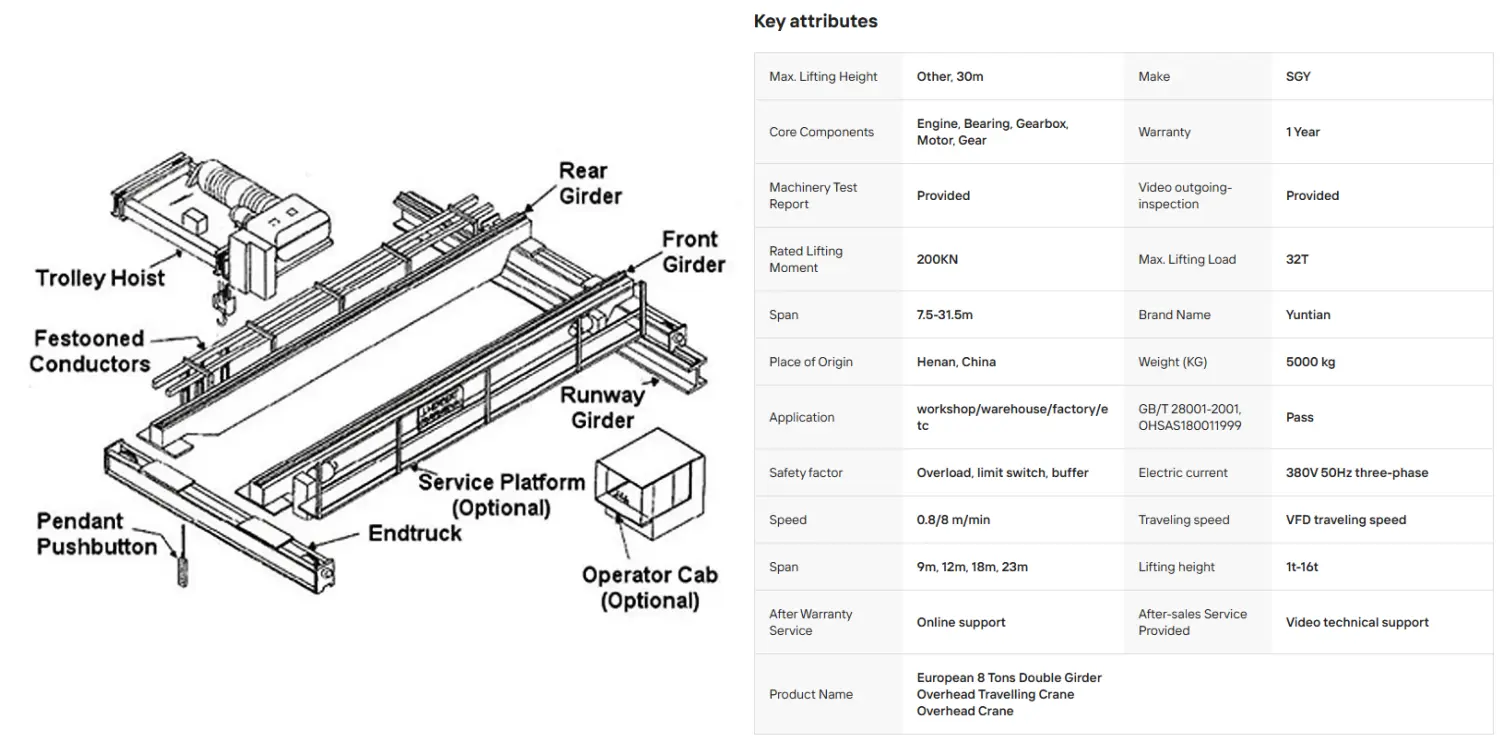

TECHNICAL DATA

Parameter Specification
Lifting Capacity 5 – 550 t (customizable)
Span 7.5 – 31.5 m (customizable)
Lifting Height 6 – 30 m (customizable)
Work Duty Class A5 – A7
Hoisting Speed 0.6 – 16 m/min
Trolley Travel Speed 2 – 50 m/min
Crane Travel Speed 3 – 92 m/min
Control Method Wireless remote / Pendant / Cabin

HOT PRODUCTS

Single girder suspension overhead crane

Single girder suspension overhead crane

Apply: Manufacturing & Assembly Workshops,Warehousing & Logistics,Light Industry & Textile Mills ,Food Processing & Cold Storage,Automotive Repair & Service Bays,Power Generation & Utility Facilities
more Read More
High Quality Clamshell Grab Bucket Overhead Crane Double Girder Bridge Crane with Grappler

High Quality Clamshell Grab Bucket Overhead Crane Double Girder Bridge Crane with Grappler

Apply: Coal-fired and thermal power plants,Steel mills and metallurgical processing facilities,Ports, docks, and bulk cargo terminals,Mining and mineral processing sites,Municipal solid waste incineration plants
more Read More
Low Headroom Single Girder Crane

Low Headroom Single Girder Crane

Apply: Manufacturing & Assembly,Warehousing & Logistics,Food Processing & Cold Storagem,Maintenance & Repair Bays,Water & Wastewater Treatment,Textile & Light Manufacturing
more Read More

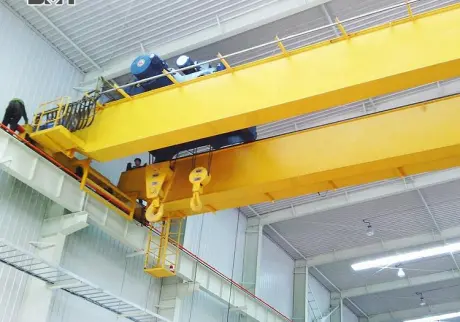

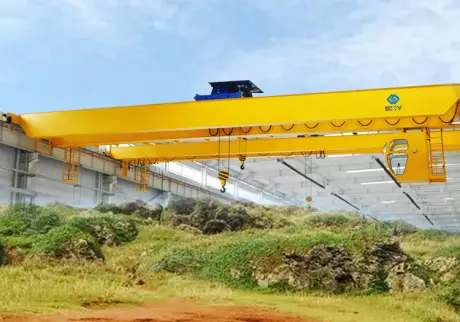

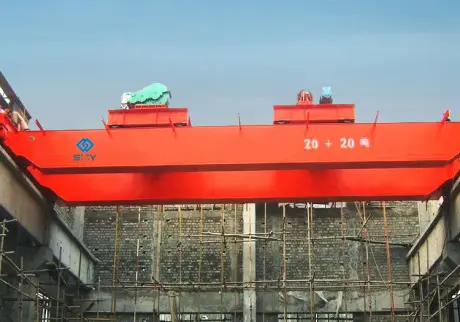

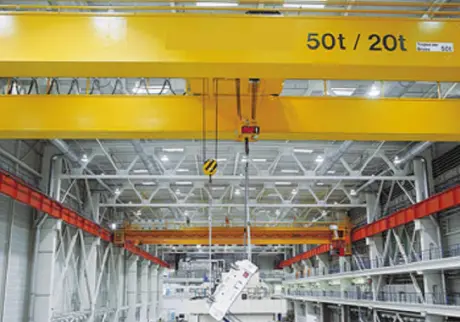

APPLICATION

application

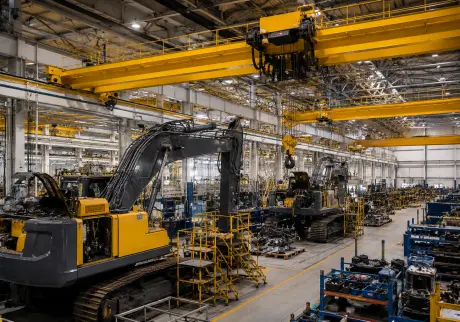

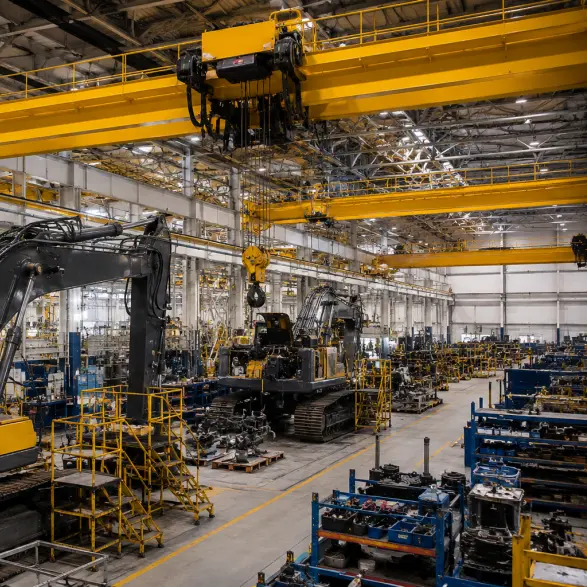

Heavy Machinery & Equipment Manufacturing
application

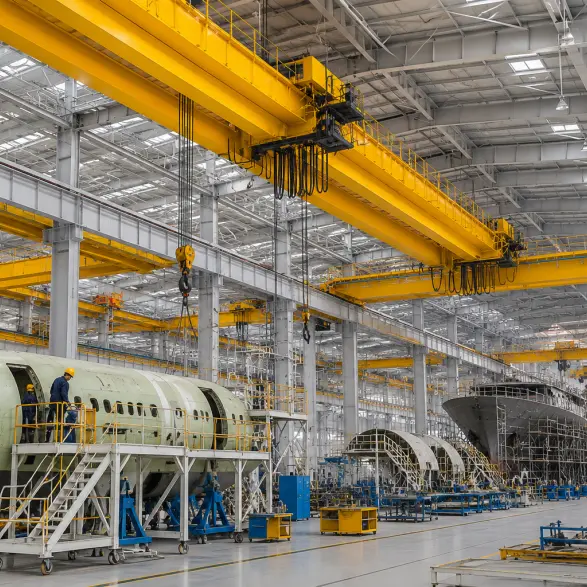

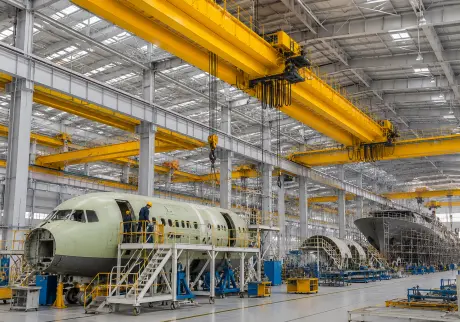

Aerospace & Shipbuilding
application

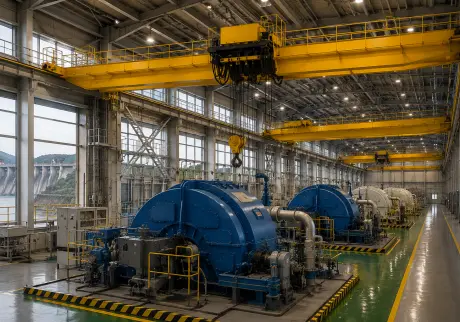

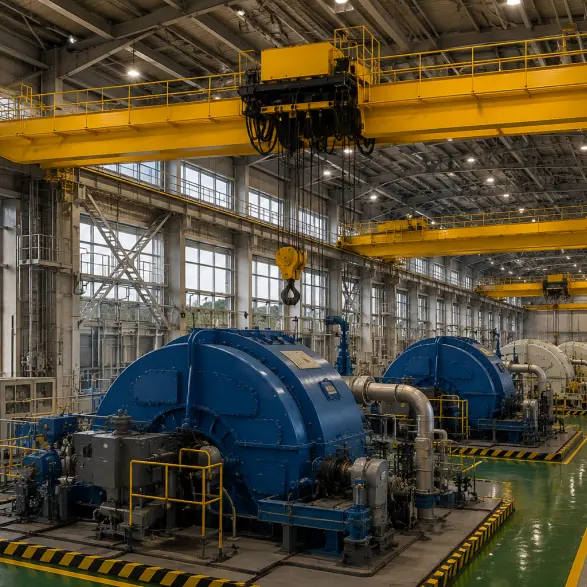

Thermal & Hydro Power Stations
application

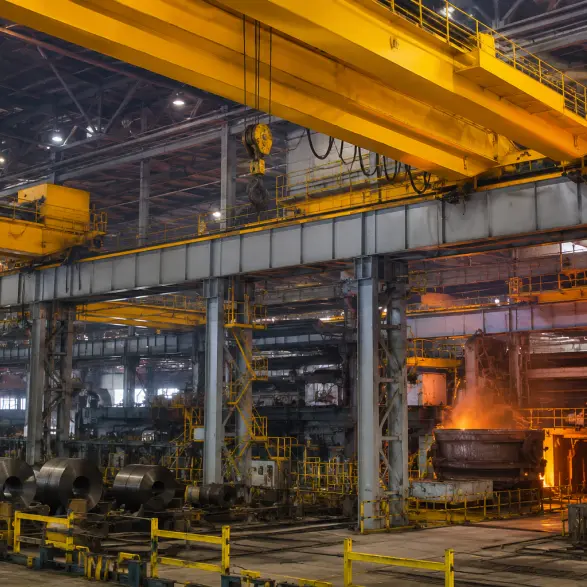

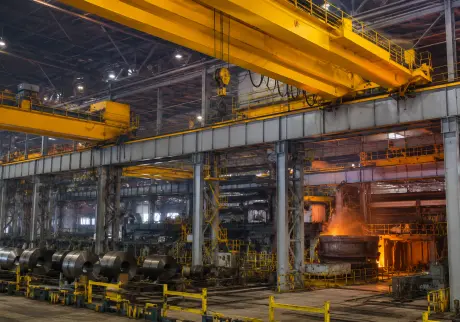

Steel Mills & Metallurgical Plants
application

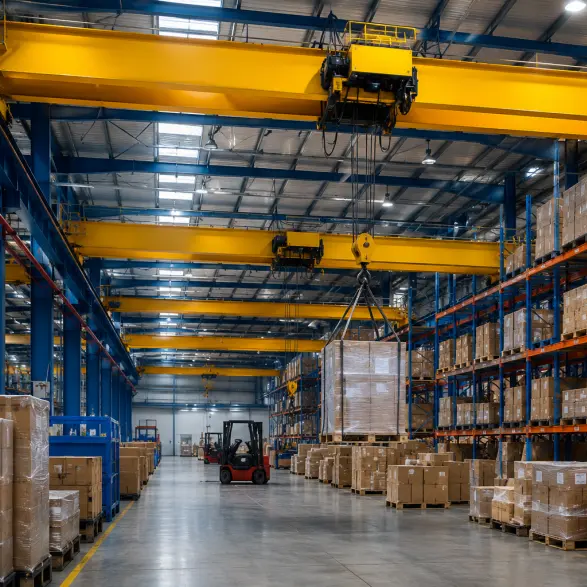

Logistics, Warehousing & Ports
application

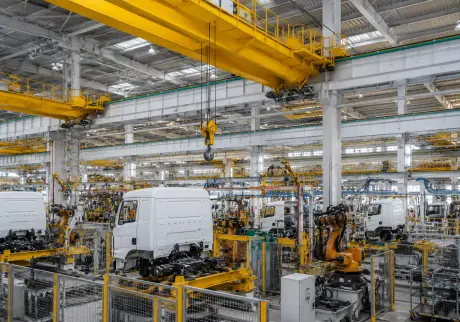

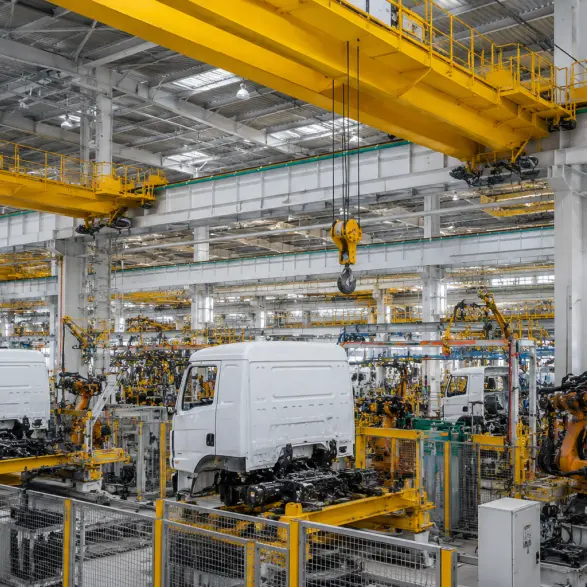

Automotive & Heavy Vehicle Manufacturing

FEATURES

1
Heavy-duty double box girder structure engineered to FEM/DIN standards with optimised deadweight-to-capacity ratio, reducing building steelwork and civil engineering costs
2
Compact European trolley with low-headroom hoist maximises usable hook height and enables operation close to the building ceiling in height-restricted workshops
3
Variable Frequency Drive (VFD) control on all motions delivers shock-free acceleration and deceleration, precise load positioning, and extended service life of mechanical components
4
Direct-coupled geared motor drive units on crane travel and cross-travel motions eliminate open gearing, reduce maintenance points, and ensure quiet operation
5
Comprehensive safety systems including overload protection, upper and lower limit switches, emergency stop, phase sequence protection, and anti-derailment devices

FAQ

What are the primary structural and financial advantages of a European Double Girder Crane over a conventional heavy-duty double girder crane?

add subtract
Engineered to European FEM/DIN standards, Euro-spec double girder cranes deliver lower Total Cost of Ownership (TCO) and superior space efficiency:Substantial Deadweight & Wheel-Load Reduction: Self-weight is reduced by 20% to 25%, and maximum wheel loads drop by 15% to 30%, drastically reducing the structural steel and concrete foundation costs required for new factory builds.Minimized Hook Blind Spots: Compact trolley geometry and optimized main box-girder profiles shrink the hook approach limits ($C$ and $K$ dimensions), increasing effective factory floor utilization by 15% to 20%.Lower Operating Costs: Energy-efficient motors, regenerative drives, and optimized transmission efficiency cut long-term electricity consumption by up to 25% to 30%.

How does the European double girder crane achieve millimeter-level positioning accuracy for heavy or delicate loads?

add subtract
Handling high-value, heavy equipment (such as aerospace parts, wind turbine gearboxes, or large automotive dies) demands smooth, vibration-free motion: Standard Dual VFD Inverter Drives: All three motion axes (hoist, cross travel, long travel) feature Variable Frequency Drives as standard, offering stepless speed regulation and soft acceleration/deceleration. Smart Electronic Anti-Sway Control: An integrated PLC algorithm dynamically adjusts motor torque curves based on the pendulum length of the wire rope, neutralizing load sway by up to 95% and achieving pinpoint placement accuracy within ±2mm.

What engineering makes the European "Three-in-One" driving mechanism virtually maintenance-free?

add subtract
Conventional heavy open-gear drives require regular greasing, alignment, and brake shoe replacements. European double girder cranes feature enclosed, modular drive assemblies: Integrated Modular Architecture: Combines an IP55/Class H motor, a precision hardened-gear reducer, and an electromagnetic disc brake into a single compact housing. Enclosed Synthetic Oil Bath: Hardened and precision-ground helical gear sets run inside a sealed oil bath, operating under 75dB with a design service life of 10,000 hours / up to 10 years without oil changes. Self-Adjusting Disc Brakes: Dust-proof electromagnetic brakes automatically adjust for pad wear, rated for over 1,000,000 safe braking cycles.

Can European double girder cranes be customized with smart Industry 4.0 monitoring and automated lifting features?

add subtract
Yes. European-type cranes are built on open industrial communication architecture to support Smart Factory upgrades: Smart Crane Diagnostics: Real-time IoT monitoring modules continuously track brake wear, motor temperature, remaining fatigue life, and operating hours, pushing predictive maintenance alerts to site engineers. Auto-Positioning & Virtual Geofencing: Supports programmed target-to-target auto-travel, load weighing telemetry, and software-defined "No-Fly Zones" to prevent collisions with sensitive machinery or elevated office bays.
