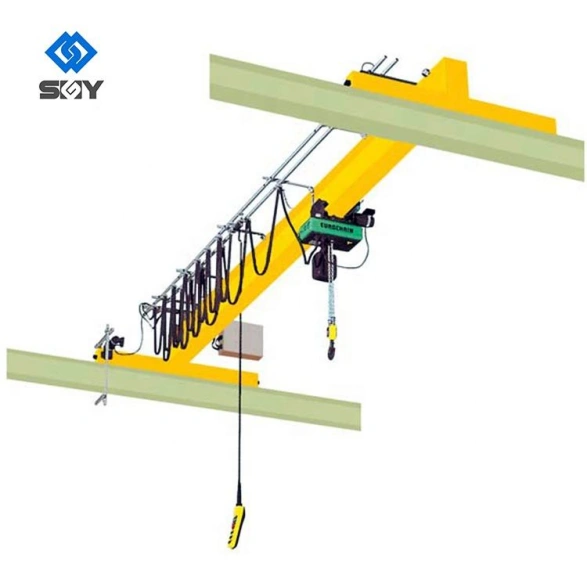

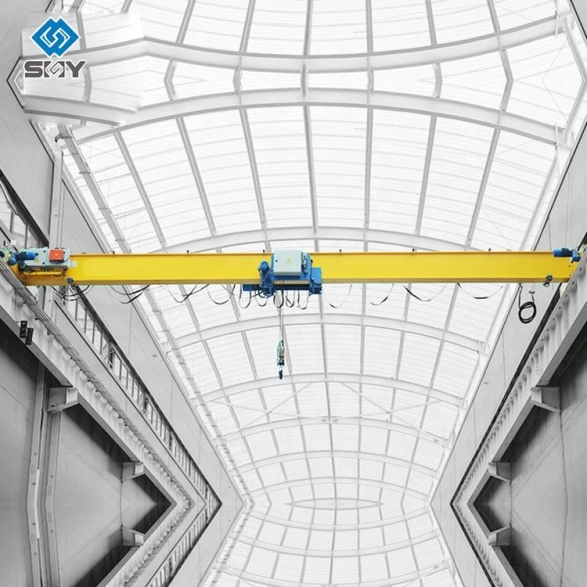

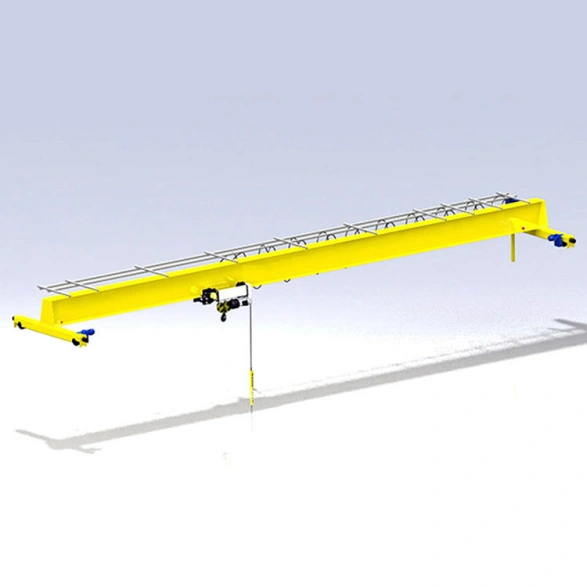

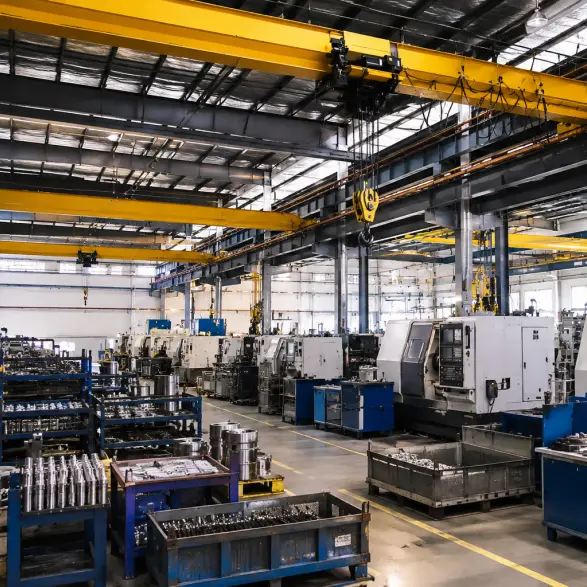

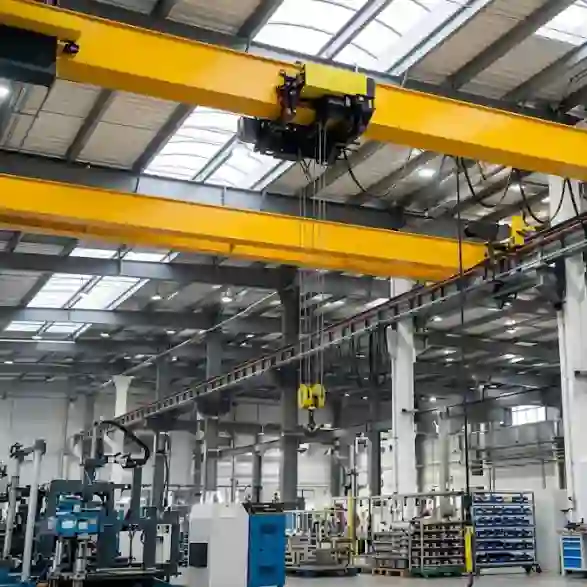

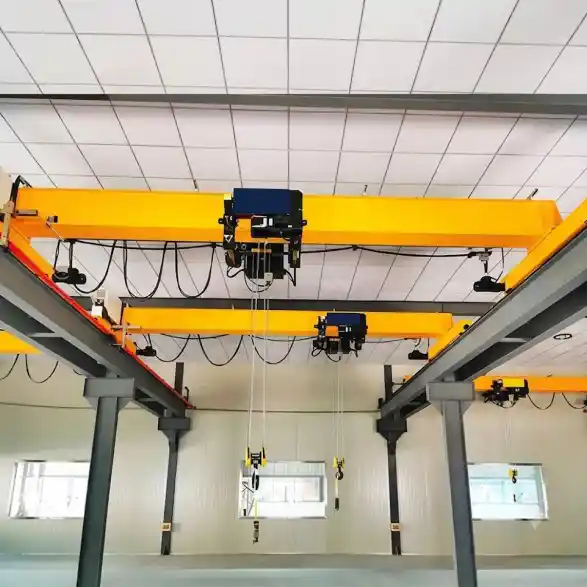

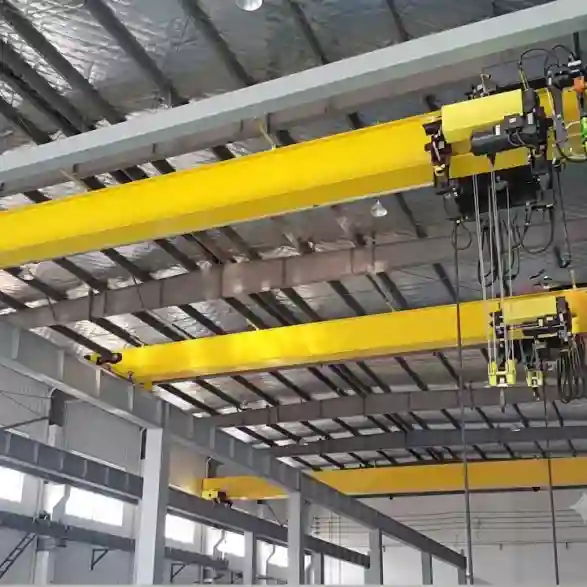

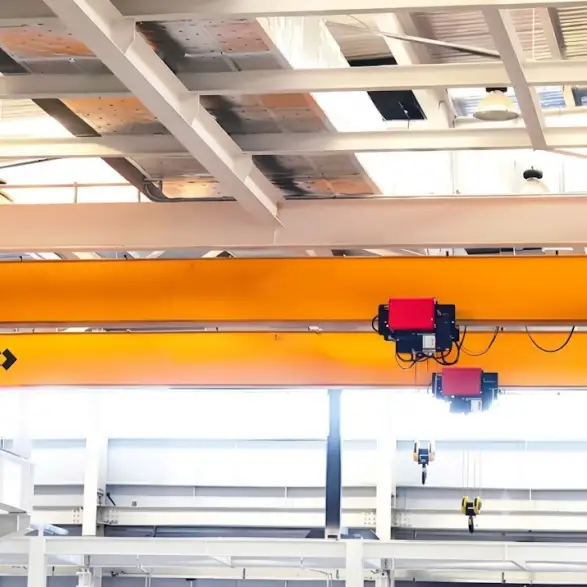

European Single-Girder Overhead Crane

Authentication mark:

Capacity:1 – 20 t (extendable to 32 t)

Lifting Height:6 – 30 m (Customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

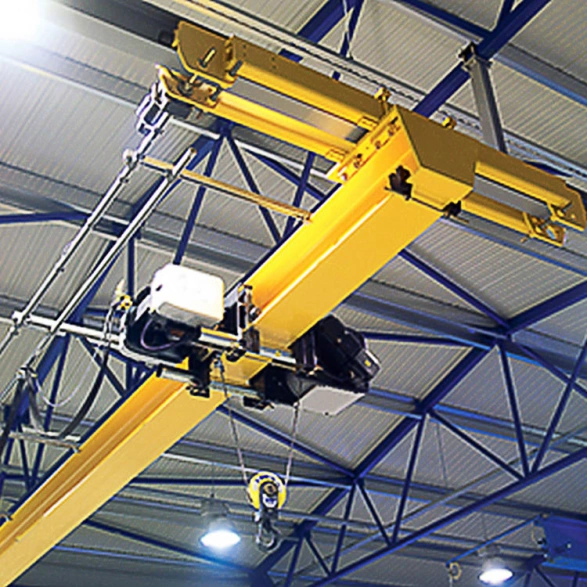

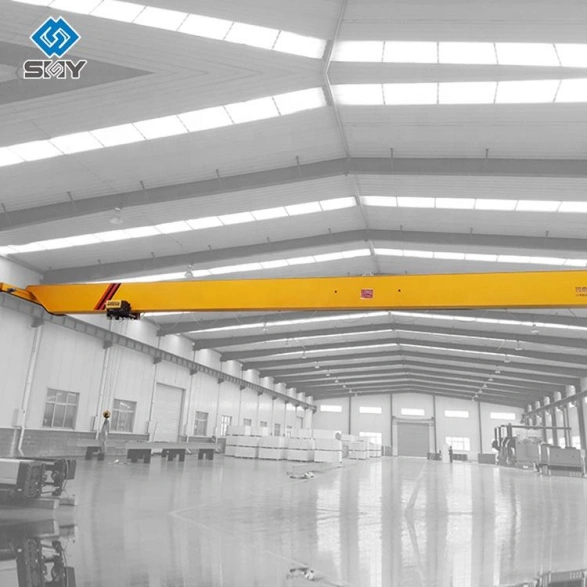

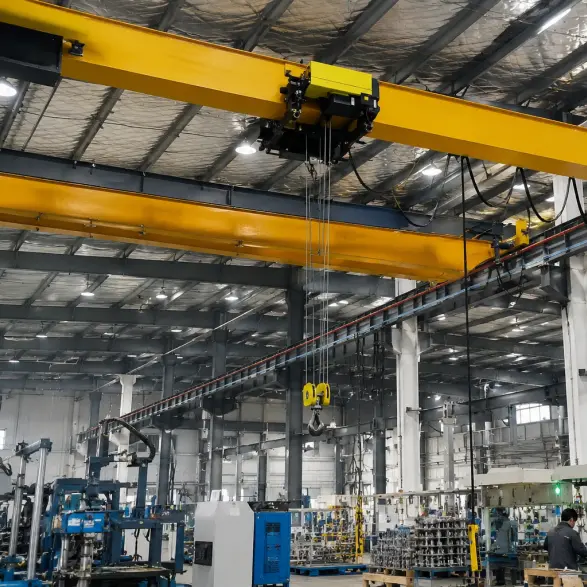

The European Single Girder Overhead Crane is a lightweight, high-efficiency lifting solution engineered to FEM, DIN, and ISO European standards. Adopting European modular and lightweight design principles, the crane features an optimized box-section main girder, compact end carriages, and a three-in-one geared motor drive system that integrates motor, reducer, and brake into a single unit.Compared to a conventional single girder crane, the European design reduces deadweight by approximately 15–30%, lowers wheel pressure by about 15–20%, and delivers a smaller hook-to-wall distance—maximizing usable workspace within existing facilities. The crane's lifting height is typically 20–25% lower than a normal EOT crane, freeing more vertical space for lifting operations.

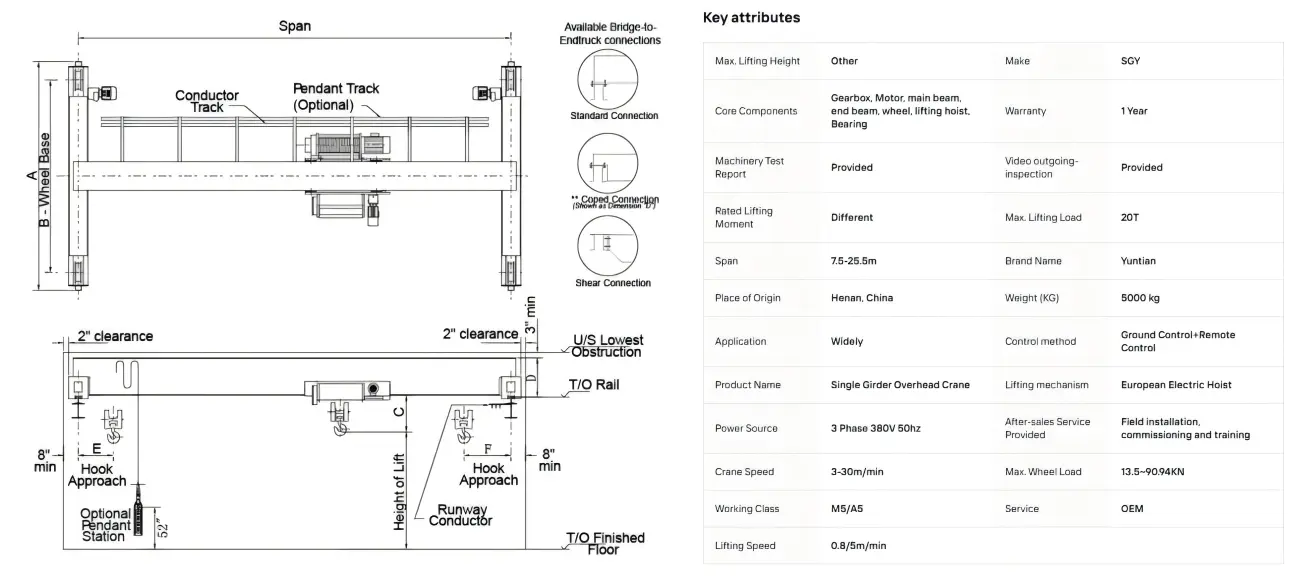

TECHNICAL DATA

Parameter	Specification
Lifting Capacity	1 – 20 t (extendable to 32 t)
Span	7.5 – 31.5 m (Customizable)
Lifting Height	6 – 30 m (Customizable)
Work Duty Class	A3 – A5
Crane Travel Speed	3 – 75 m/min
Trolley Travel Speed	2 – 20 m/min
Control Method	Wireless remote / Pendant / Cabin

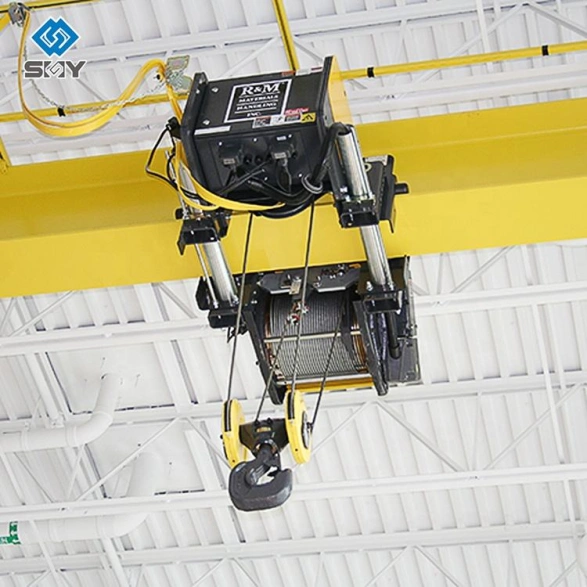

Hoist Type	MD1 electric wire rope hoist or European electric hoist
Hoisting Speed	8.0 m/min / 0.8 m/min (dual speed)

HOT PRODUCTS

Rotary Feeding Overhead Crane with 270° Rotating Trolley for Scrap Charging in Steel Mills

Apply: Integrated Steel Mills.Steelmaking Converter Operations,Metallurgical Scrap Handling,Foundries & Iron Casting,Steel Scrap Recycling Facilities,Heavy Industrial Charging Operations

Yuntian Heavy Duty European Type Single Girder Overhead Crane

Apply: Heavy Machinery & Equipment Manufacturing,Automotive & Vehicle Production,Steel Mills & Metal Processing,Precast Concrete & Construction Materials,Paper & Pulp Manufacturing,General Heavy Industry

Hook Type Double Girder Overhead Crane

Apply: Small manufacturing workshops and assembly area Machinery repair and maintenance shops Warehouses, storage facilities, and logistics centres

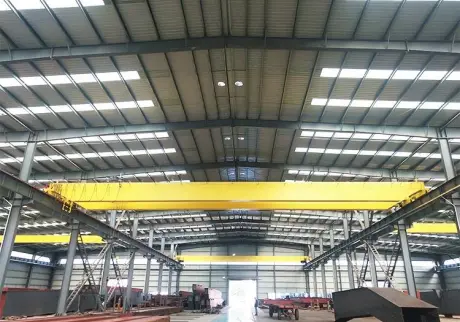

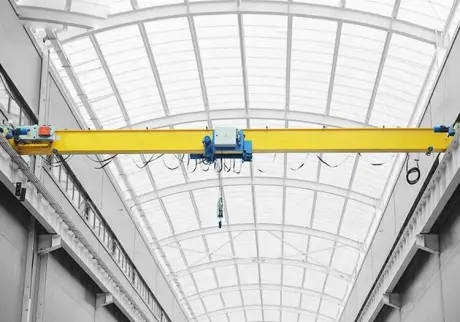

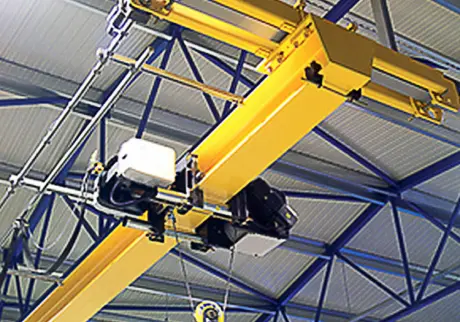

Light Manufacturing

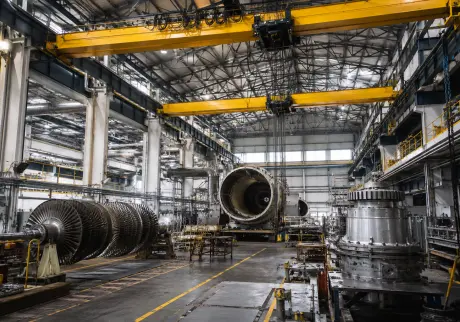

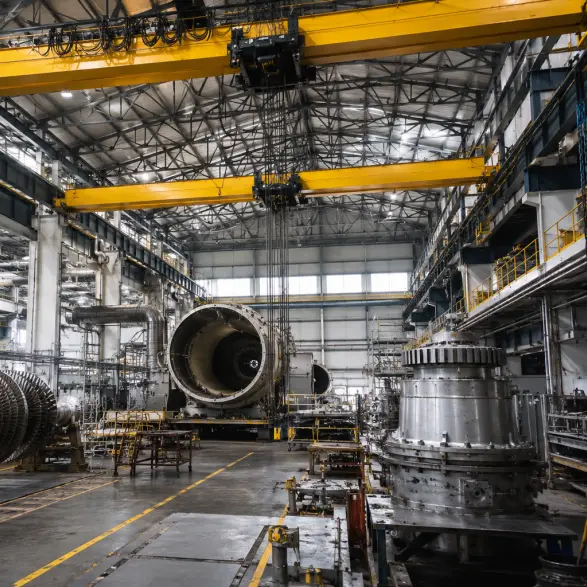

Power Generation & Utilities

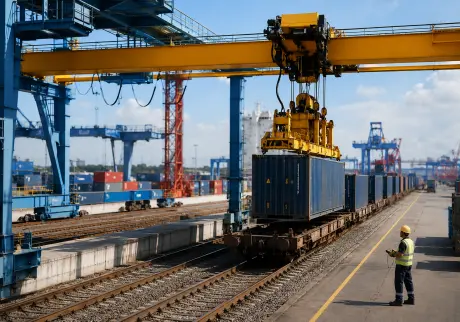

Railway & Port Operations

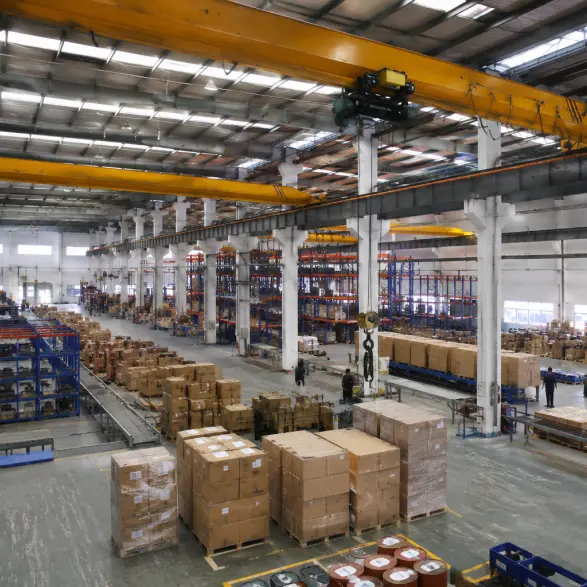

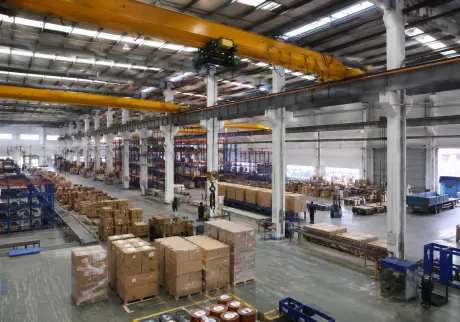

Warehousing & Logistics

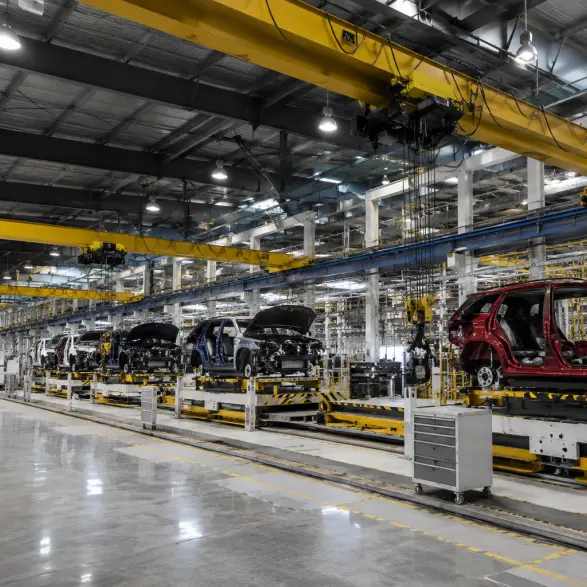

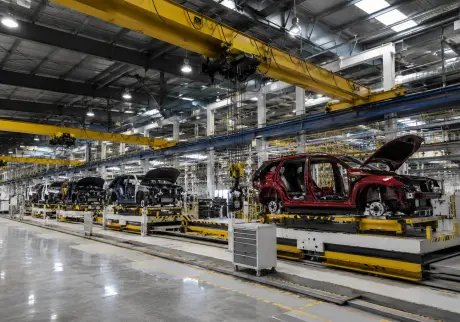

Automotive & Assembly

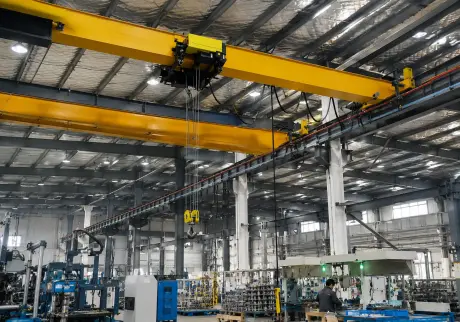

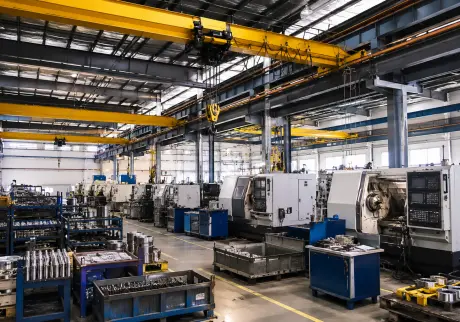

Mechanical Manufacturing & Metalworking

FEATURES

Lightweight & Space-Efficient Design — Engineered to European FEM/DIN standards, the compact box-girder structure reduces deadweight and wheel loads. Compared to traditional single-girder cranes, it achieves a smaller hook-to-wall distance and lower headroom requirements, maximizing usable workspace in existing facilities and reducing structural support costs in new builds.

Smooth & Precise Lifting Control — Equipped with a twin-speed or variable frequency drive (VFD) lifting mechanism, the hoist delivers stable load handling with lifting speeds from 0.8 m/min (slow) to 5 m/min (fast), suitable for both precision positioning and efficient vertical movement.

Dual-Mode Operation System — Supports both wired pendant (ground) control and wireless remote control operation. The remote control system uses synthesized RF technology with programmable channels, allowing operators to maintain a safe distance while retaining full visibility of the load in motion.

Comprehensive Safety Protection — Standard safety systems include overload protection, upper and lower limit switches, emergency stop, phase sequence protection, and anti-derailment devices, ensuring safe operation across various industrial environments.

REQUEST A QUOTE

Our products are mainly exported to South America, Southeast Asia,Africa, Russia, Turkey, Middle East countries and so on.
