Can this Single Jib Portal Crane handle both containers and general bulk cargo?

Yes! The crane can be configured with a quick-change hook/spreader interface. You can switch between a container spreader, a cargo hook block, or a motor grab bucket depending on your operational needs.

What is the advantage of a Single Jib Portal Crane over a Four-Link Bar Crane for container handling?

Single jib portal cranes feature a simpler mechanical structure, lower total dead weight, lower initial purchasing cost, and easier maintenance. They offer high ROI for river ports, feeder terminals, and medium-density container yards.

How does the crane ensure safe operation during strong winds at coastal ports?

The crane is equipped with real-time anemometers (wind speed meters), automatic hydraulic rail clamps, wheel brakes, and heavy-duty storm anchoring pins that lock the crane securely to the quay during storms or non-working periods.

Can the crane be customized according to our port's rail gauge and power supply?

Absolutely. All dimensions, including track gauge, portal clearance height, outreach, power supply (voltage/frequency), and lifting height, are fully customizable to fit your existing berth infrastructure.

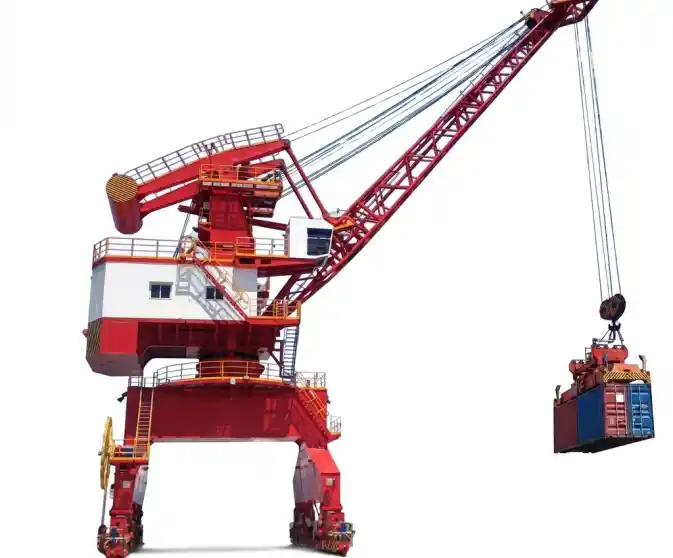

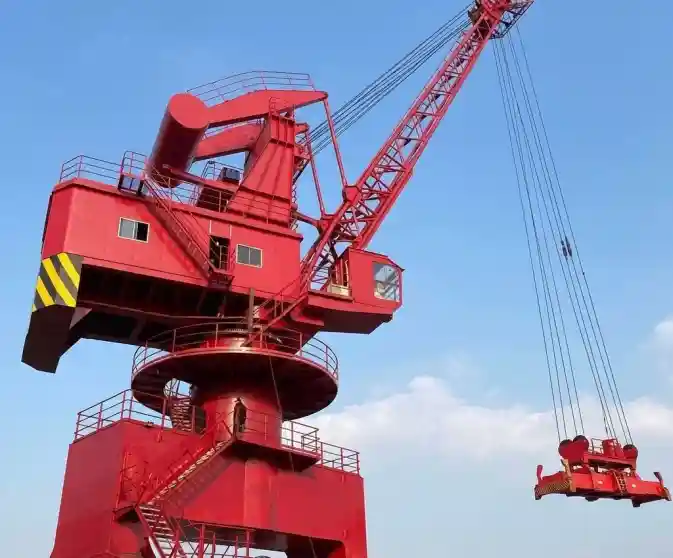

Single Jib Portal Crane for Container Handling

Authentication mark:

Capacity:10t – 50t (customizable)

Lifting Height:8m – 45m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

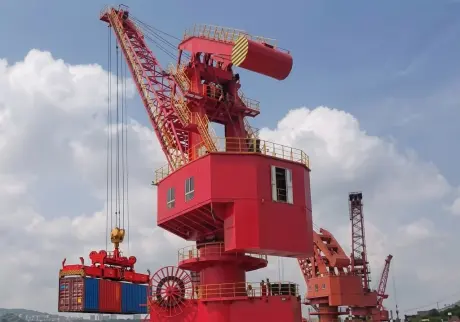

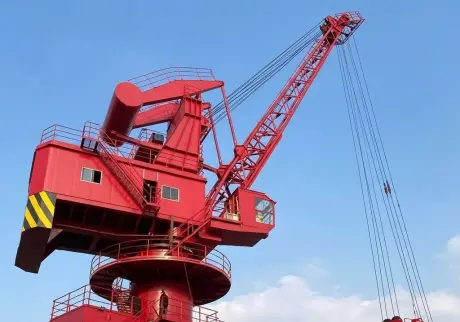

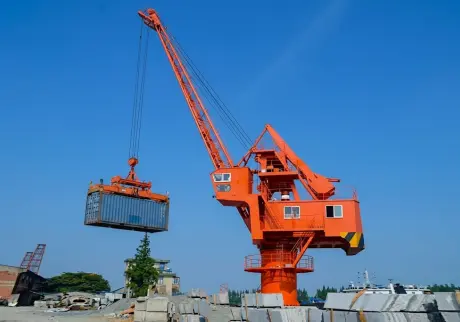

Application

Features

PRODUCT INTRODUCTION

The Single Jib Portal Crane for Container Handling is a heavy-duty, highly cost-effective port lifting solution designed for loading, unloading, and stacking standard ISO 20ft, 40ft, and 45ft containers at river terminals, coastal wharves, and inland container depots. Featuring a simplified single-arm lattice jib, 360-degree continuous slewing, and advanced VFD control, it combines excellent operational stability with lower maintenance overhead.

TECHNICAL DATA

Parameter	Specification Range
Rated Capacity	10t – 50t
Working Radius	8m – 45m
Lifting Height	10m–30m
Hoisting Speed	15 – 50 m/min
Luffing Speed	15 – 40 m/min
Slewing Speed	0.8 – 2.0 rpm
Traveling Speed	15 – 30 m/min
Rail Gauge (Span) x Base Distance	6m – 16m
Applicable Container Sizes	ISO 20ft, 40ft, 45ft
