anchor winch

Authentication mark:

Capacity:Small yachts: 0.15-5 kN Large vessels: 15-523 kN

Lifting Height:Rope capacity: 100-500 meters Anchor depth: 82.5 meters (common standard)

Voltage/Hertz:(DC）：12V, 24V，(AC): 110V, 220V, 380V, 440V, 480V

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Marine Anchor Winch is a deck machinery solution purpose-built for raising, lowering, and securely holding ship anchors. Powered by electric, hydraulic, or diesel drive systems, the winch is engineered for continuous operation in the demanding marine environment. The winch is available in horizontal (widely used on commercial vessels) or vertical (commonly used on naval ships to save deck space) configurations. Core components include the bedplate, bracket, cable lifter (gypsy), brake, clutch, gearbox, and electric control system. Key specifications cover chain diameter (φ19–φ105mm), working load (15–523kN), rated hoisting speed (≥9m\/min), and static holding load. The winch is certified by major classification societies including CCS, ABS, BV, and DNV, and fully complies with international standards such as GB4447-92, ISO 4568, and ISO 9089.

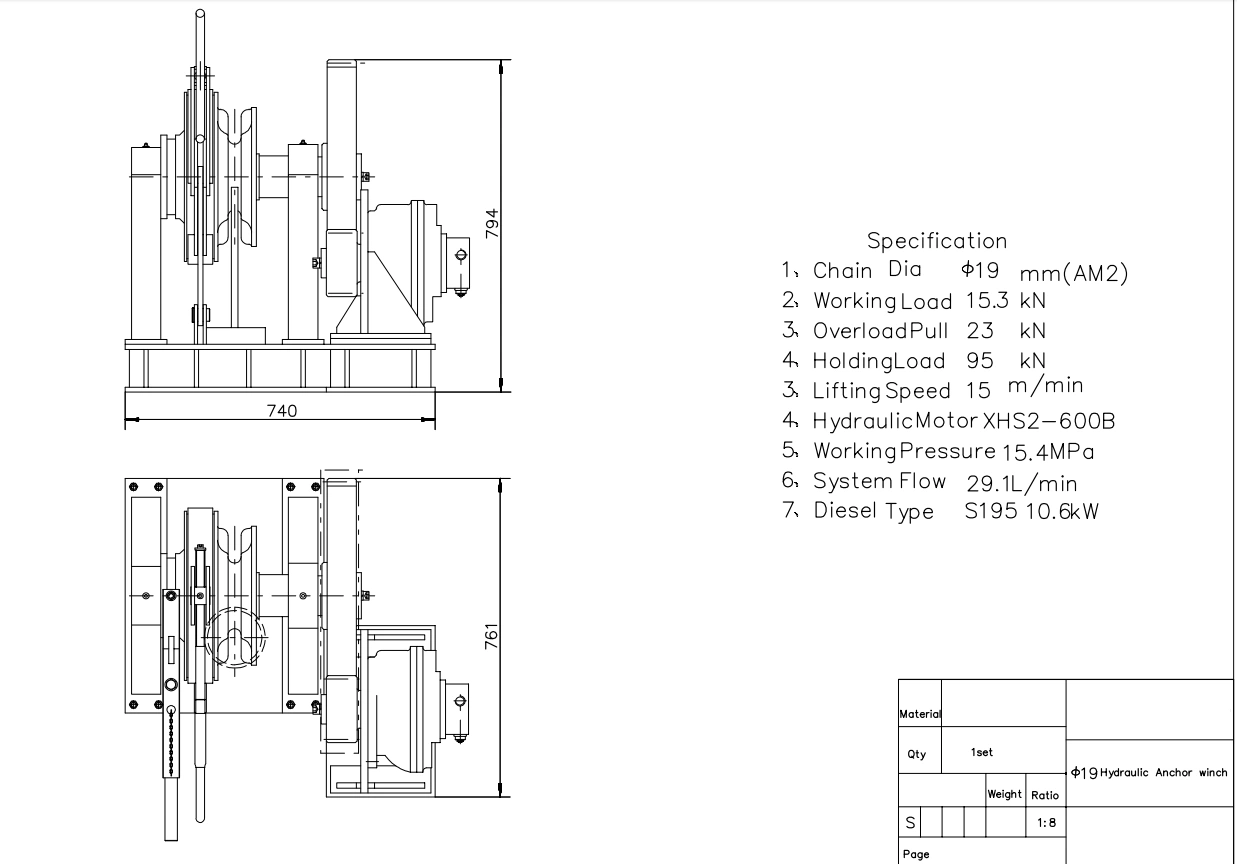

TECHNICAL DATA

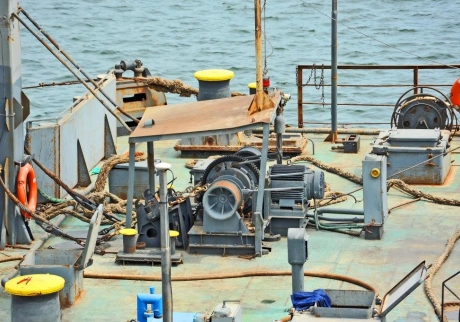

APPLICATION

Ocean-Going Merchant Vessels & Bulk Carriers

Naval Ships, Coast Guard & Government Patrol Vessels

Offshore Engineering Vessels & Platform Supply Vessels (PSV)

Oceanographic Research & Survey Vessels

Fishing Vessels & Aquaculture Workboats

Yachts & Pleasure Crafts

FEATURES

Heaving — Retrieves the anchor and chain from the seabed or riverbed, enabling the vessel to resume navigation. The windlass must heave at a specified speed of at least 9 m/min, up to 15 m/min.

Letting Go / Dropping Anchor — Releases the anchor chain, allowing the anchor to sink under its own weight to secure the vessel. Average chain speeds vary between 5–7 m/sec during this operation.

Chain Handling & Control — Precisely controls the paying out and hauling in of the anchor chain via the cable lifter, ensuring smooth and reliable anchoring operations.

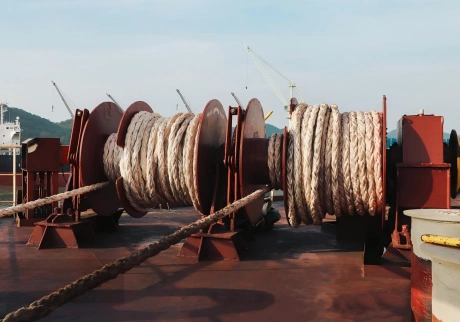

Mooring / Warping — Drums or warp ends fitted on the ends of the shafts permit handling of mooring lines, assisting in berthing, unberthing, or warping the vessel alongside a quay.

REQUEST A QUOTE

Our products are mainly exported to South America, Southeast Asia,Africa, Russia, Turkey, Middle East countries and so on.
