What are the main benefits of a Mobile Harbour Crane (MHC) over a fixed Ship-to-Shore (STS) Crane?

The main advantage is flexibility and lower infrastructure cost. Unlike fixed STS rail cranes, an MHC runs on rubber tyres, allowing it to move freely between different berths, relocate for storage, or serve multi-purpose terminals. It also requires less wharf load capacity and zero rail installation costs.

How does the MHC maintain stability on uneven quay ground?

The MHC chassis is equipped with multiple hydraulic outriggers with large supporting pads. These outriggers distribute the ground pressure evenly across the wharf surface and can automatically level the crane on slightly uneven terrain.

Is the Mobile Harbour Crane available in an electric version?

Yes, we offer Dual-Power / E-MHC models. The crane can run on its onboard diesel generator for transport between berths and plug into shore electric power during operation to significantly reduce fuel costs and carbon emissions.

Mobile Harbour Container Crane

Q: Can the Mobile Harbour Crane handle cargo other than containers?

Yes. By equipping the crane with a quick-change coupling system, operators can easily switch between automatic container spreaders, heavy-duty cargo hooks, and hydraulic/motor grabs for bulk materials (coal, ore, grain) within minutes.

Authentication mark:

Capacity:30t – 125t (customizable)

Lifting Height:10m – 58m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

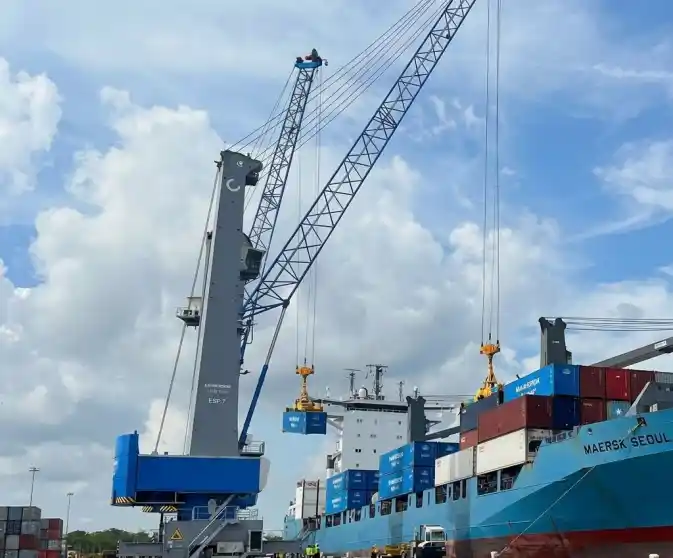

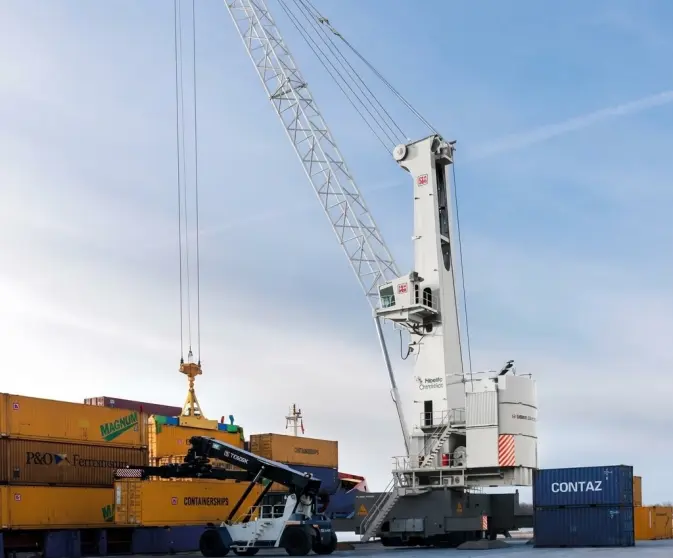

The Mobile Harbour Container Crane (MHC) is a highly flexible, multi-purpose port lifting solution engineered for fast, efficient container handling and heavy cargo transfer at sea ports, river terminals, and multi-purpose berths. Mounted on a heavy-duty, multi-axle rubber-tyred chassis, the MHC combines the high mobility of a mobile crane with the heavy lifting reach and stability of a traditional quay crane.

Designed to handle standard ISO 20ft, 40ft, and 45ft containers (as well as twin-20ft lifts), the mobile harbour crane features a 360-degree continuous slewing boom and a broad working radius to service Panamax and Post-Panamax vessels. Powered by diesel-hydraulic or electro-hydraulic drive systems, our MHCs feature advanced anti-sway technology, high lifting speeds, and ergonomic operator cabins for maximum productivity and safety in round-the-clock port operations.

TECHNICAL DATA

Parameter	Specification Range
Rated Lifting Capacity (Under Spreader)	30t – 125t (customizable)
Working Radius (Max / Min Outreach)	10m – 58m (customizable)
Lifting Height (Above / Below Quay)	Above: 20m – 45m / Below: 10m – 18m
Hoisting Speed (Loaded / Empty)	20 – 90 m/min (customizable)
Slewing Speed	0.8 – 1.8 rpm (customizable)
Luffing Speed	15 – 60 m/min (customizable)
Travel Speed (Chassis)	2.0 – 5.0 km/h (customizable)
Chassis Configuration	Multi-axle rubber tyres (Independent steering)

APPLICATION

Container Vessel Loading & Unloading

Multi-Purpose Berth Operations

Temporary or Expansion Terminals

FEATURES

High-Efficiency Container Handling Designed for fast loading, unloading, and stacking of standard ISO 20ft, 40ft, and 45ft containers (including twin-20ft operations) with short working cycle times.

Multi-Cargo Versatility Features a quick-change coupling mechanism that allows seamless switching between automatic container spreaders, heavy-duty cargo hooks, and motor/hydraulic grabs for bulk material handling.

360-Degree Full Slewing Capability Provides continuous 360-degree rotation to give the operator full operational coverage and maximum positioning flexibility across ship holds and quay storage areas.

High-Mobility Cross-Berth Transport Equipped with a multi-axle, rubber-tyred chassis and multi-mode steering (crab steering, 90-degree lateral travel, and tight-radius turning) for easy relocation between different berths or storage yards.

Precision Anti-Sway & Load Control Integrated electronic and hydraulic anti-sway control systems minimize container swinging during high-speed slewing and luffing, ensuring safe and exact placement into cell guides.

REQUEST A QUOTE

Our products are mainly exported to South America, Southeast Asia,Africa, Russia, Turkey, Middle East countries and so on.
