Boat Lift Hoist Crane
product

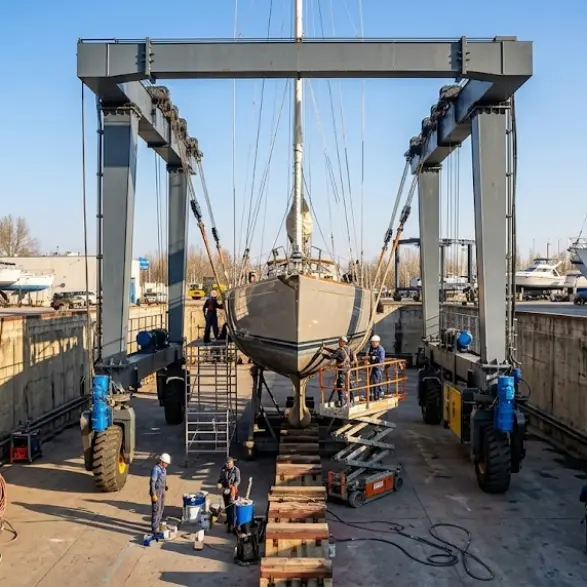

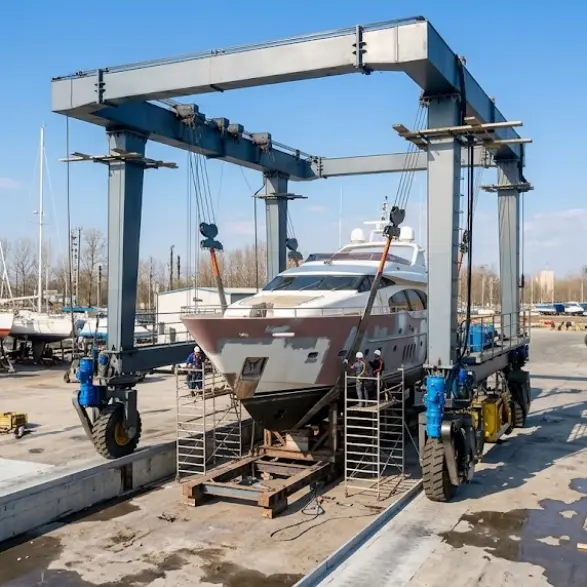

Portable boat lift hoist crane for small to medium boats
Electric-powered boat lift hoist crane for efficient lifting
Boat lift hoist crane in operation at waterfront facility
High-capacity boat lift hoist crane for yacht lifting
product
play
Portable boat lift hoist crane for small to medium boats
Electric-powered boat lift hoist crane for efficient lifting
Boat lift hoist crane in operation at waterfront facility
High-capacity boat lift hoist crane for yacht lifting
Authentication mark:
CCC CE ABS BV CCS
Capacity:10~1200t
Lifting Height:Customized
Voltage/Hertz:220V, Customized
Brand Name: YUNTIAN
Place of Origin: Henan, China
Get a Free Quote
Introduction
Technical Data (General Version)
Application
Features
PRODUCT INTRODUCTION

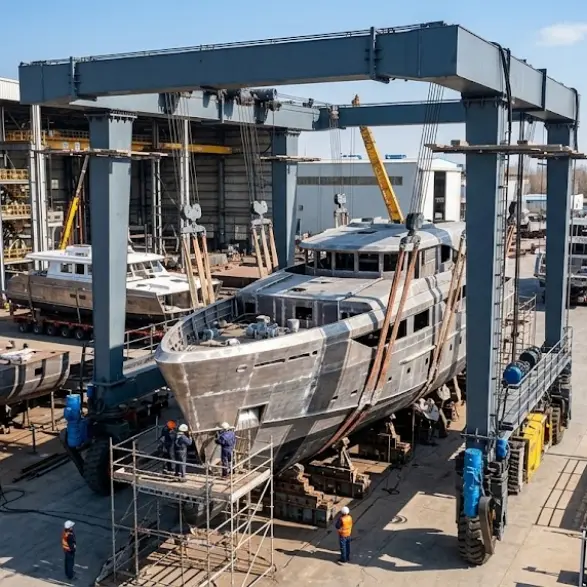

The Boat Hoist Crane (also known as Marine Travel Lift, Mobile Boat Hoist, or Boat Gantry Crane) is a high-performance lifting solution designed specifically for marinas, shipyards, and yacht clubs. It is used for boat launching, retrieval, maintenance, repair, and onshore transport. Featuring a unique open-frame gantry structure, it can safely lift and transport vessels that exceed the height of the crane itself. Lifting capacities range from 10 to 1,200 tons, with customizable span and lifting height to accommodate everything from small pleasure boats to large commercial workboats.

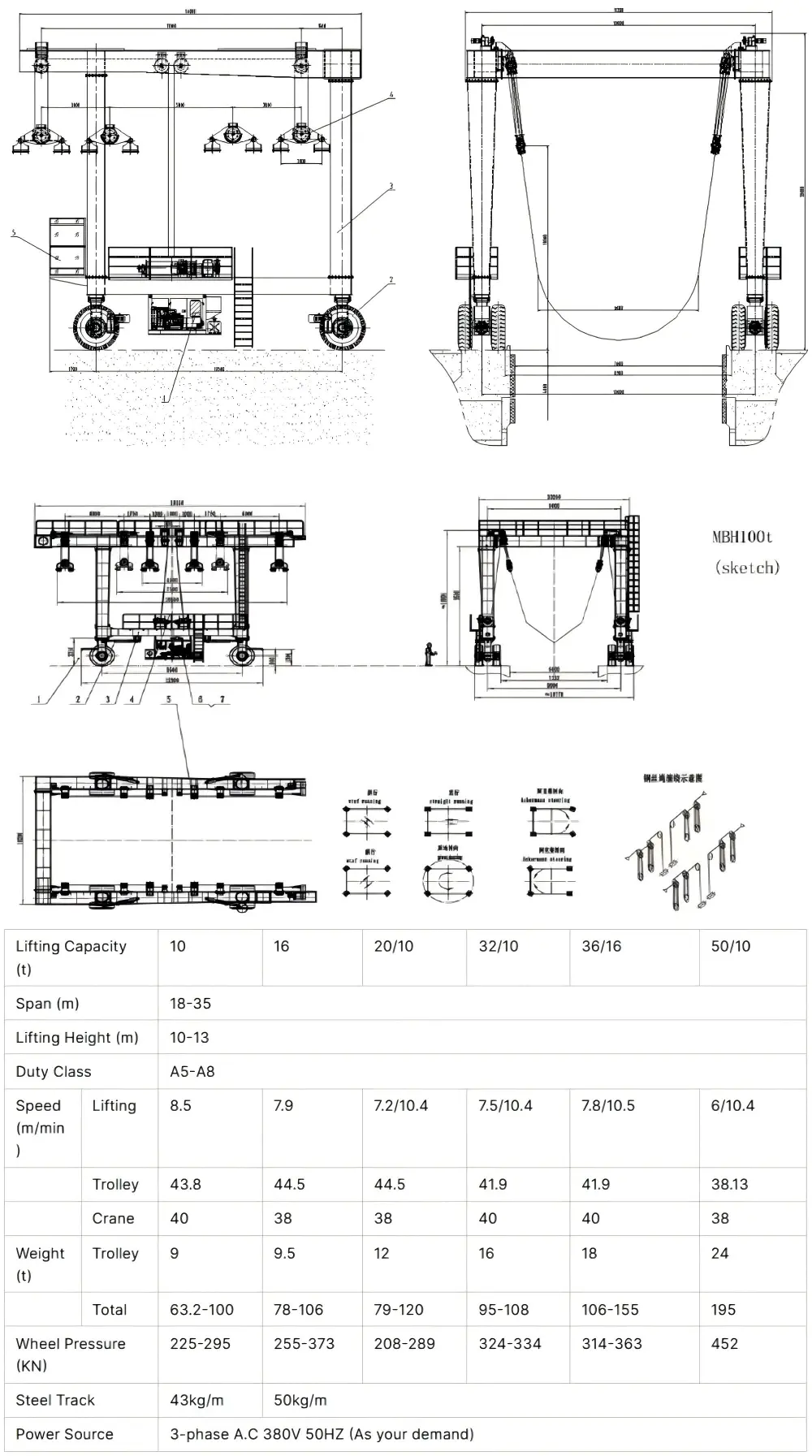

TECHNICAL DATA
Rated Lifting Capacity 10 - 1,200 t
Span 5 - 35 m (Customizable)
Lifting Height 3 - 25 m(Customizable)
Hoisting Speed (Full Load) 0 - 2 m/min
Hoisting Speed (No Load) 0 - 5 m/min
Travel Speed (Full Load) 0 - 20 m/min
Travel Speed (No Load) 0 - 35 m/min
Gradeability 2% - 4% (Full Load)
Drive System Diesel-Hydraulic
Control Mode Cabin / Wireless Remote
Steering Modes Straight, Oblique, Ackerman, 90° Pivot
Lifting Points 4 - 32 (Synchronized)
Sling Type High-Strength Soft Slings
Safety Devices Overload Limiter, Limit Switches, Emergency Stop, Electronic Weighing Indicator
APPLICATION
application

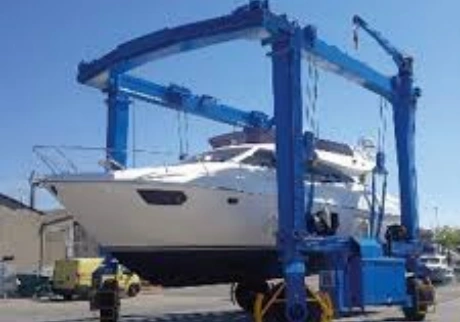

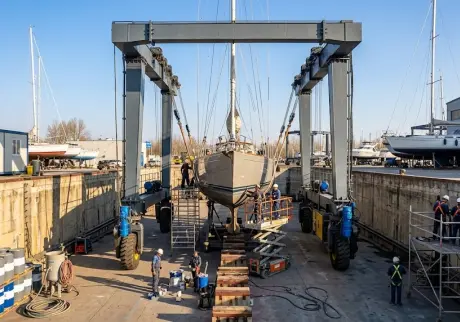

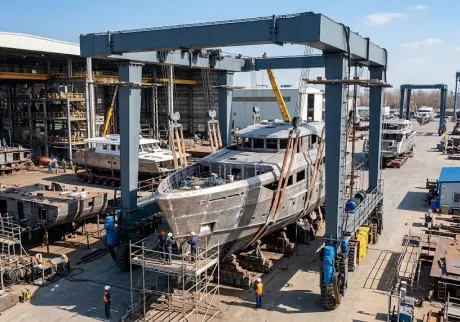

Dry Docks (Vessel Haul-Out & Maintenance)
application

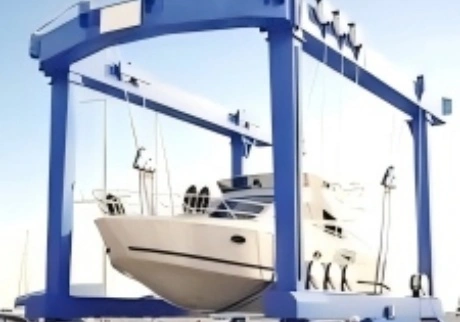

Shipyards (Vessel Repair & Construction)
application

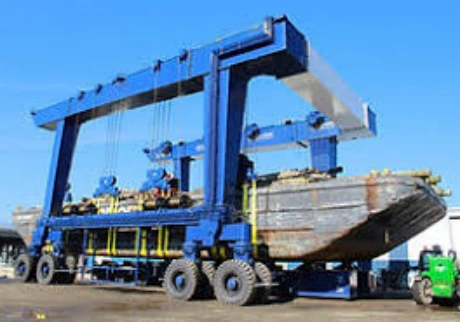

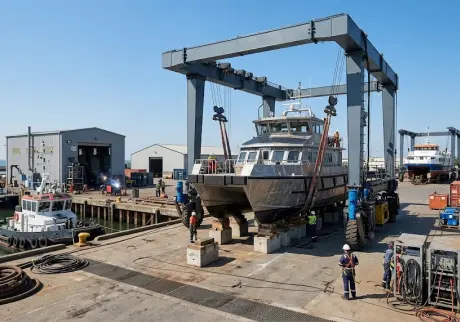

Commercial Docks / Workboat Facilities
application

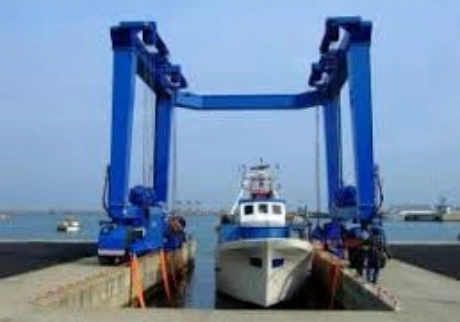

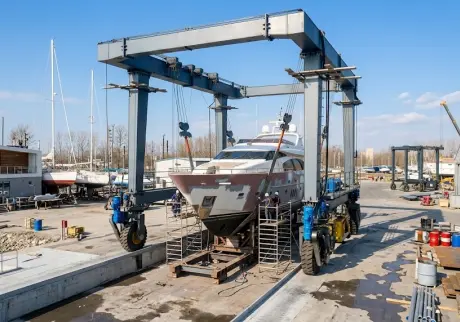

Yacht Clubs / Marinas Shipyards (Vessel Repair & Construction) Dry Docks (Vessel Haul-Out & Maintenance) Commercial Docks / Workboat Facilities Yacht Manufacturing Plants
application

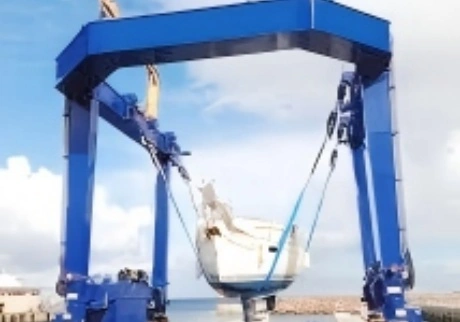

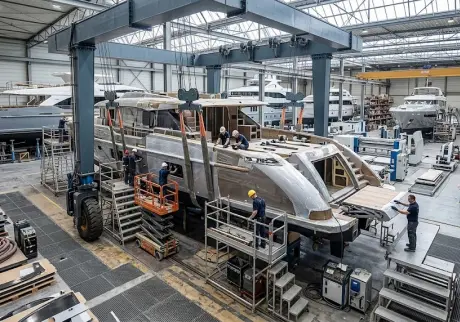

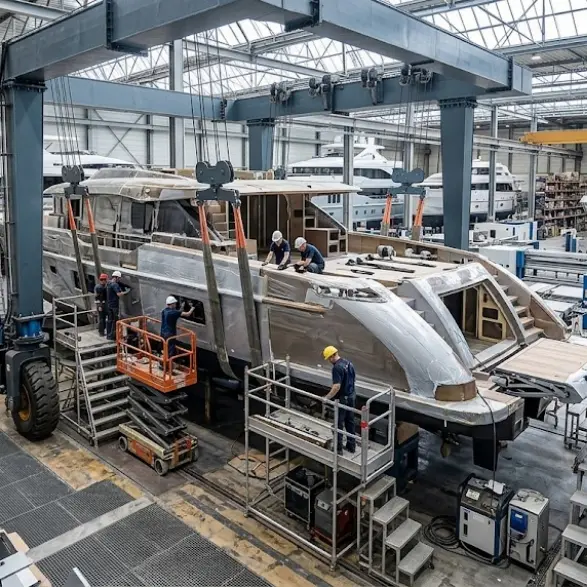

Yacht Manufacturing Plants
FEATURES
1
U-Frame Open Gantry Design
2
Multi-Point Synchronized Lifting
3
Soft High-Strength Slings
4
Multiple Steering & Travel Modes
5
Hydraulic Drive + PLC VFD Control
6
Comprehensive Safety Protection
