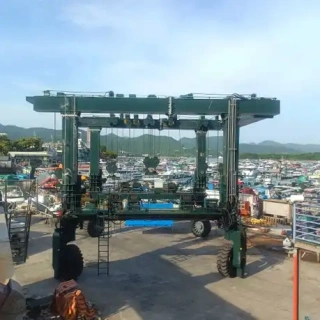

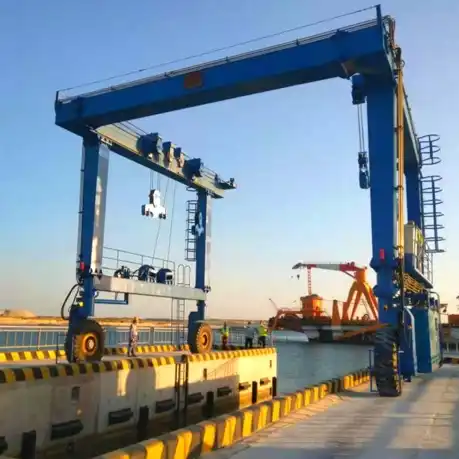

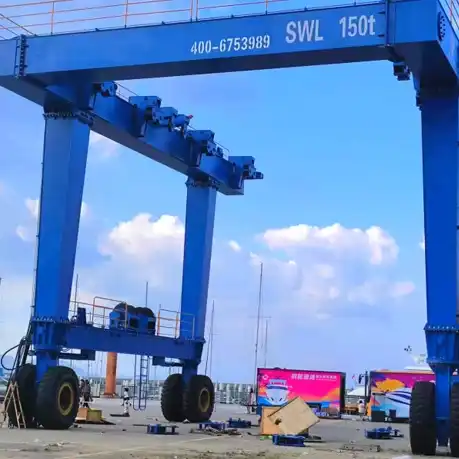

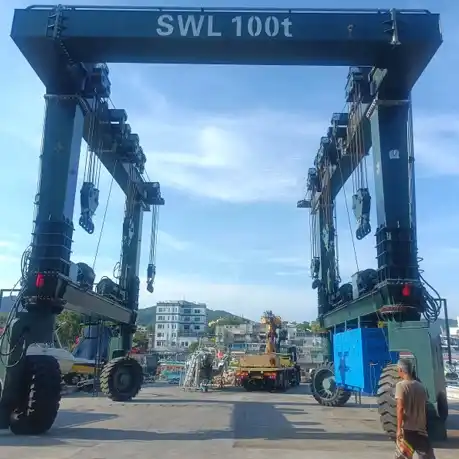

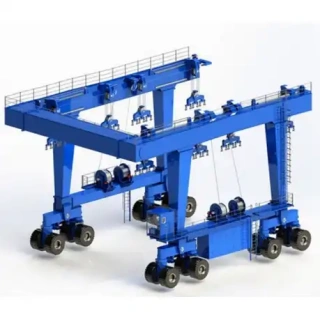

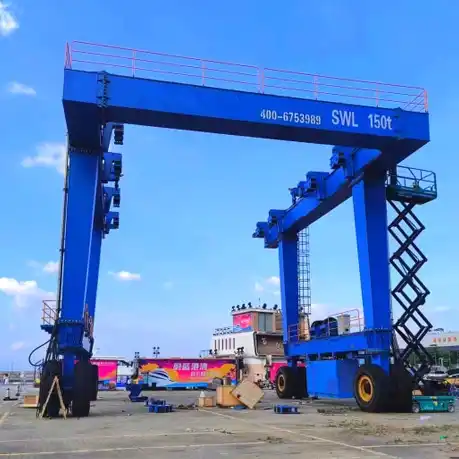

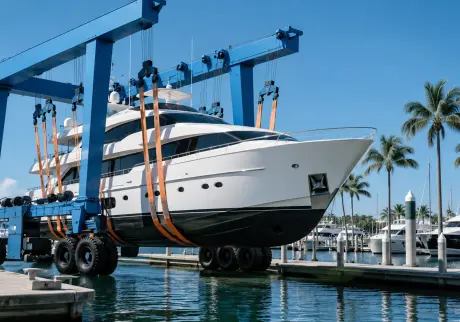

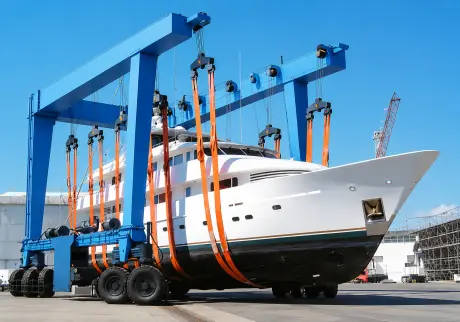

Tire-Type Yacht Handling Crane – Main Benefits and Features

1. Wide Use in Marine Environments

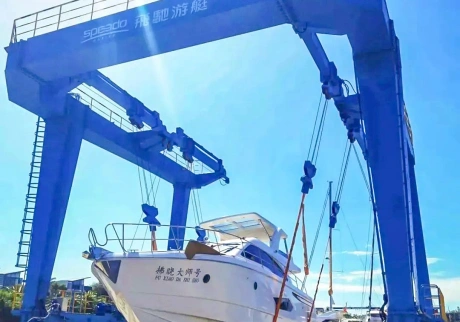

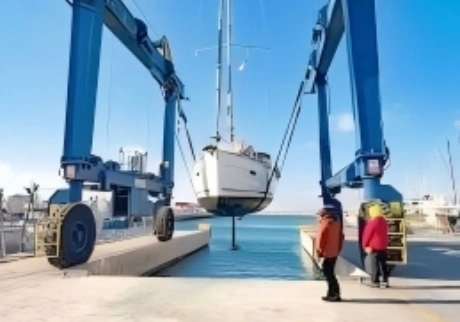

   Made for yacht clubs, marinas, naval bases, and water parks.
   Handles yachts and boats from 10T to 1200T, meeting various customer needs.
   Suitable for shore maintenance, new boat launches, and space-saving storage.




2. Efficient Hydraulic Diesel Engine
   Self-powered with a built-in diesel generator for continuous operation.
   Hydraulic drive allows smooth and energy-saving lifting and moving.
   Low running costs with smart energy use (load-sensitive system).




3. Excellent Mobility and Steering
   12 steering modes including:
   Straight, diagonal, and sideways movement.
   90° on-the-spot turning and Ackerman steering for accurate placement.
   Can climb 4% slopes on concrete, gravel, and uneven ground.
   Adjustable main beam width to fit different vessel sizes.




4. Safe and Non-Damaging Lifting

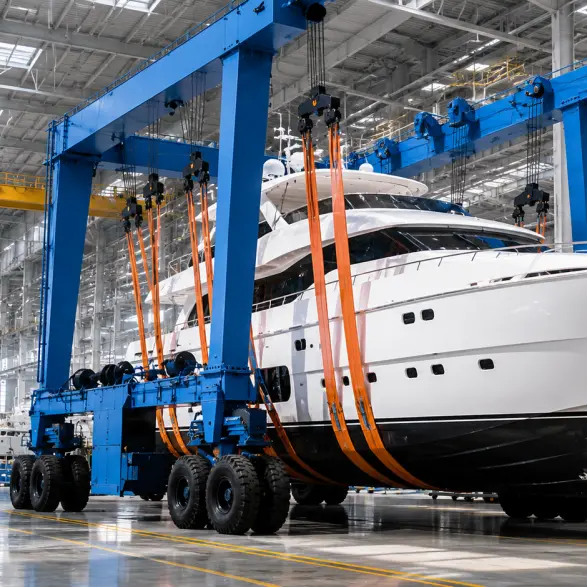

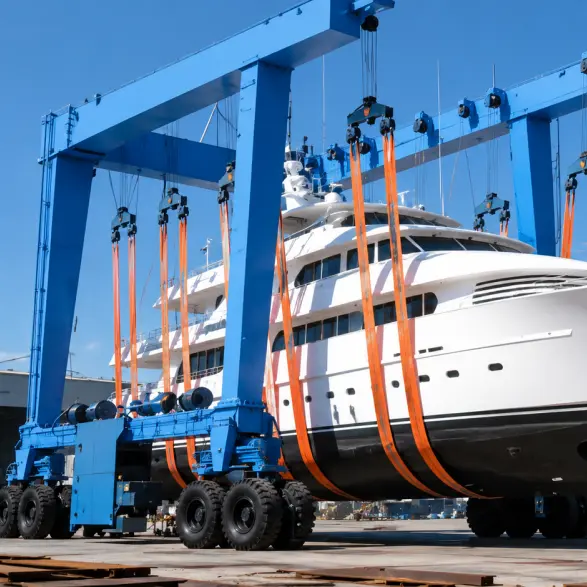

   Soft lifting belts protect yacht surfaces from scratches or damage.
   Multi-point synchronized lifting keeps loads stable and balanced.
   Wireless remote control for safe and easy operation.




5. Strong Build and Custom Options
   High-strength steel structure (CNC-cut cold-rolled plates) for long life.
   Hinged main and cross beams reduce stress from uneven ground.
   Single or double girder types available for better material use.




6. Accurate Control and Smart Functions
   PLC frequency control for smooth operation.
   Winch system with adjustable lifting points for synced multi-point hoisting.
   Can be operated from cabin or remotely for flexibility.




7. High Performance Standards
   Lifting capacity: 10T–1200T.
   Lifting speed: 0–2 m/min (with full load).
   Travel speed: 0–30 m/min (full load) / 0–40 m/min (no load).




8. Reliable Production and Certifications
   CE/SGS/ISO certified with over 20 years of experience.
   68,000m² factory using robots, CNC machining, and strict quality checks.
   Over 15 years in global trade – delivered 78,960+ cranes in 2020.




9. Eco-Friendly and Low Cost
   Less hull damage means lower environmental risk (e.g., no paint leaks).
   Low maintenance costs due to strong parts and simple upkeep.




10. Customized Solutions
    Custom designs for specific weights, space limits, or work processes.
    Full support from planning to after-sales service.

There are three key design points:

• First: Maximum load exceeds rated load by 120%.
  This ensures safe lifting within the weight limit. If the weight is over the limit, the crane will not lift, preventing accidents even if the yacht’s weight is misjudged.

• Second: Independently controlled lifting points.
  The design follows the hull shape. Lifting points are marked on the boat for easy operation. Each point can be adjusted separately to control the sling distance and keep the boat level.

• Third: Cradle-style lifting without squeezing.
  The sling lifts the hull like holding it in arms. There is no squeezing like with ordinary single-arm cranes.

Other advantages include:

• Does not take up berth space, low dock fees.

• Works easily with movable boat frames.

• Small contact area, no need to reposition.

• Saves time and money while being safe.

Even though the crane is designed to be simple, skilled operators are still essential.
Trained staff with experience are required for safe yacht launching and hauling.

Performance Features:

1. Self-powered, works anywhere without limits.

2. Diesel engine provides power; full hydraulic drive.

3. Multi-point lifting or multi-crane cooperation with high sync and stability.

4. Multiple steering modes: straight, diagonal, on-the-spot turning, and Ackerman steering. Energy-efficient.

Core Technologies:

1. No limit in yacht lifting height.

2. No damage to the hull.

3. Tires roll purely without sliding.

4. Multi-point synchronized lifting.

5. Release of internal stress on complex road surfaces.

6. Anti-slip tire technology.

Performance Parameters:
Lifting capacity: 32T–1200T
Lifting speed: 0–2 m/min (full load), 0–5 m/min (no load)
Travel speed: 0–20 m/min (full load), 0–35 m/min (no load)
Gradeability: 2%–4%

Smart Functions:

• Inching function: Allows slow and precise movement near the target. Works for lifting, trolley, and travel. Adjustable inching distance.

• Micro-speed function: Ensures smooth, slow, and precise control when moving loads. Available for all motions.

• Zero-speed hovering: Automatically prevents load drop when slipping is detected.

• Anti-impact: Upper pre-limit, upper limit, and anti-collision limit switches to prevent impact.
