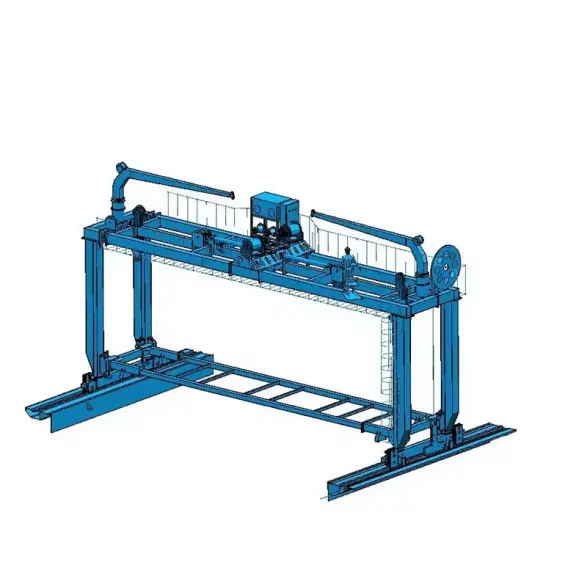

Marine Hatch Cover Gantry Crane

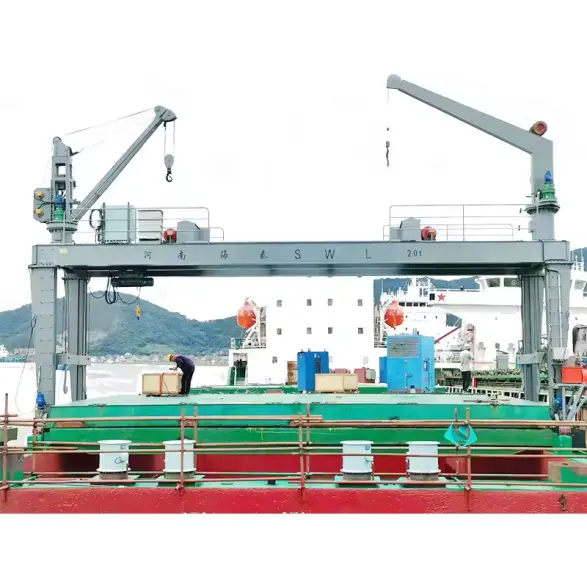

Heavy-duty Shipyard Gantry Crane for hatch cover handling

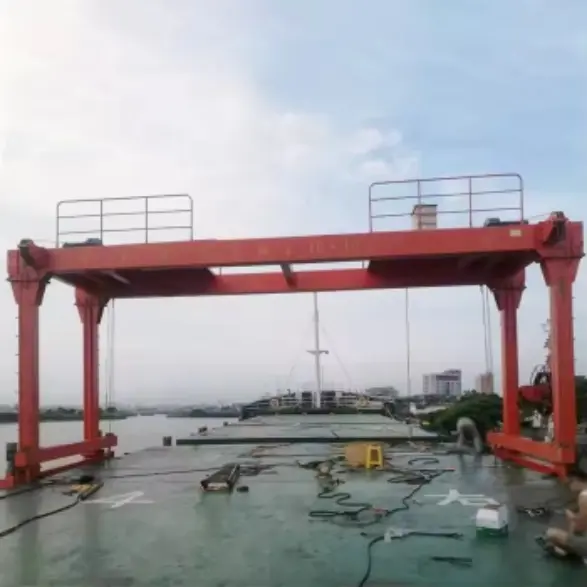

Industrial Hatch Cover Gantry Crane for marine applications

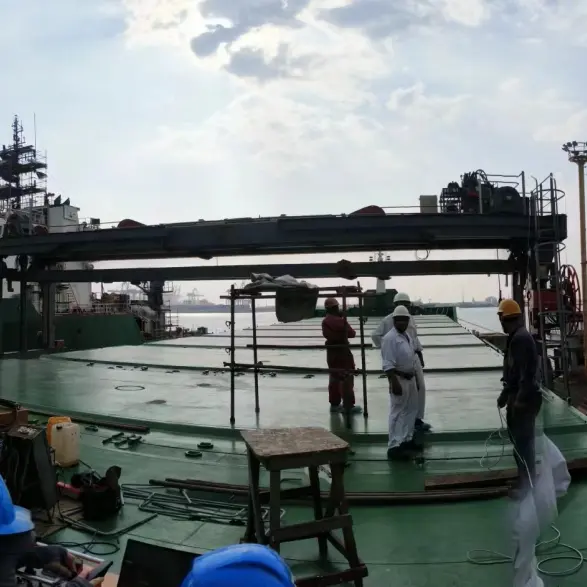

Ship Hatch Cover Gantry Crane with high lifting capacity

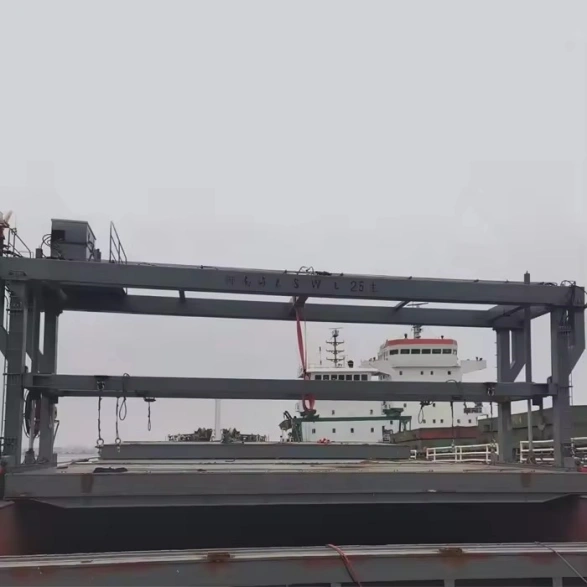

General Cargo & Multi-Purpose Vessels.webp

Authentication mark:

Capacity:3~40t (customizable)

Lifting Height:1.5~5m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

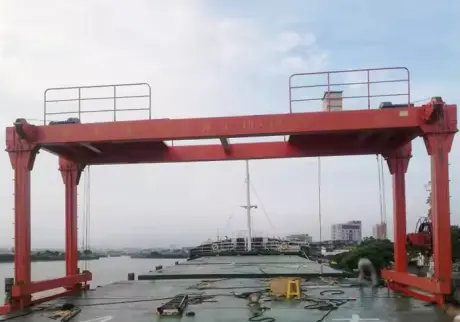

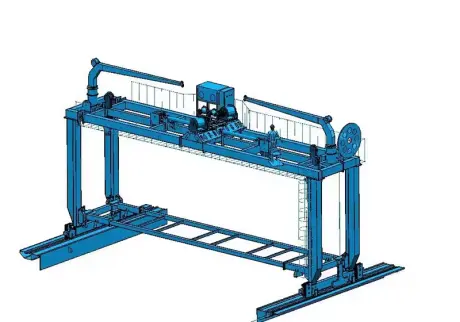

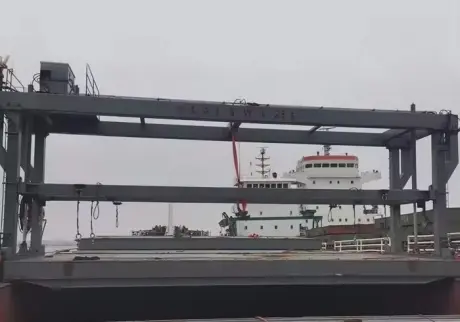

The Marine Hatch Cover Gantry Crane is a heavy-duty lifting solution specifically engineered for hoisting, traversing, and stacking ship hatch covers. Mounted on the vessel deck and traveling longitudinally along rails installed on both sides of the hull, the crane covers the entire deck area, efficiently handling hatch cover opening, closing, and repositioning operations while also supporting deck cargo handling tasks. Featuring a gantry frame structure with twin winch systems installed at both ends of the main beam, the four hooks operate synchronously to ensure smooth and stable lifting of hatch covers.

TECHNICAL DATA

Lifting Capacity	3t ~ 40t(customizable)
Lifting Height	1.5m ~ 5m(customizable)
Span	8m ~ 20m(customizable)
Power Supply	(customizable)
(Travel Speed	(customizable)
Certifications	ABS, BV, CCS, CE, CCC
Winch System	2 sets at both beam ends
Electric Hoist	1 set at lower beam
Traveling Mode	Longitudinal travel along deck rails
Safety Devices	Overload Protection, Limit Switches, Emergency Stop, Rail Anchoring, Buffers

APPLICATION

Bulk Carriers

Open Hatch Bulk Carriers

Container Ships

General Cargo & Multi-Purpose Vessels

Engineering & Offshore Support Vessels

FEATURES

Synchronized Lifting: Utilizes multi-point synchronous control technology to ensure smooth lifting of long-span hatch covers and prevent jamming.

All-Weather Corrosion Resistance: Features C5-M grade high-strength anti-corrosion coating and stainless steel core components for long-term stability in high-salinity marine environments.

Automated Operation: Supports remote or cabin control with automatic anti-skew functions, enhancing operational safety and convenience.

Rail-Mounted Stability: Compact design with strong anti-overturning capacity, ensuring safe operation even under ship rolling or heeling conditions.
